(37.100.AB[01]) - VAR - 334763, 334814 - PIN SUPPORT FOR DRAWBAR

Запчасти Case IH FARMALL 115U (37.100.AB[01]) - VAR - 334763, 334814 - PIN SUPPORT FOR DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

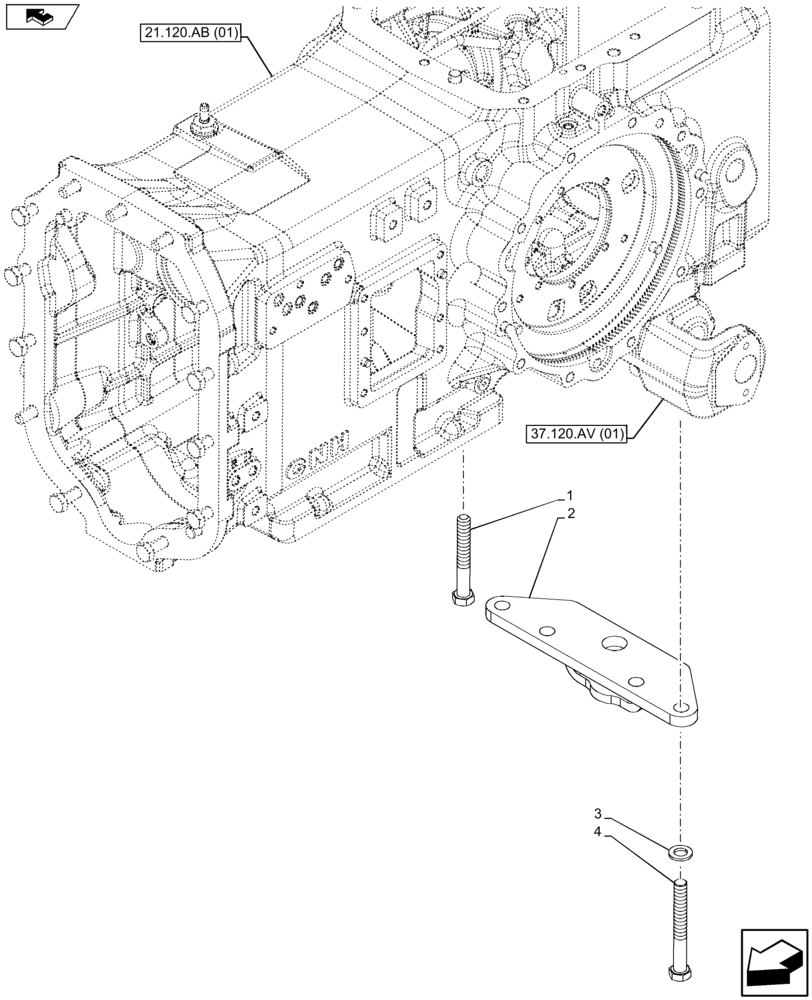

Схема запчастей Case IH FARMALL 115U - (37.100.AB[01]) - VAR - 334763, 334814 - PIN SUPPORT FOR DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
21.120.ab (01)
1
home
37.120.av (01)
home
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15864224

BOLT,Hex, M16 x 1.5 x 115mm, Cl 8.8

3шт.

2

82003409

BRACKET

1шт.

3

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

4

15864334

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

4шт.

Выбрано товаров: 4
