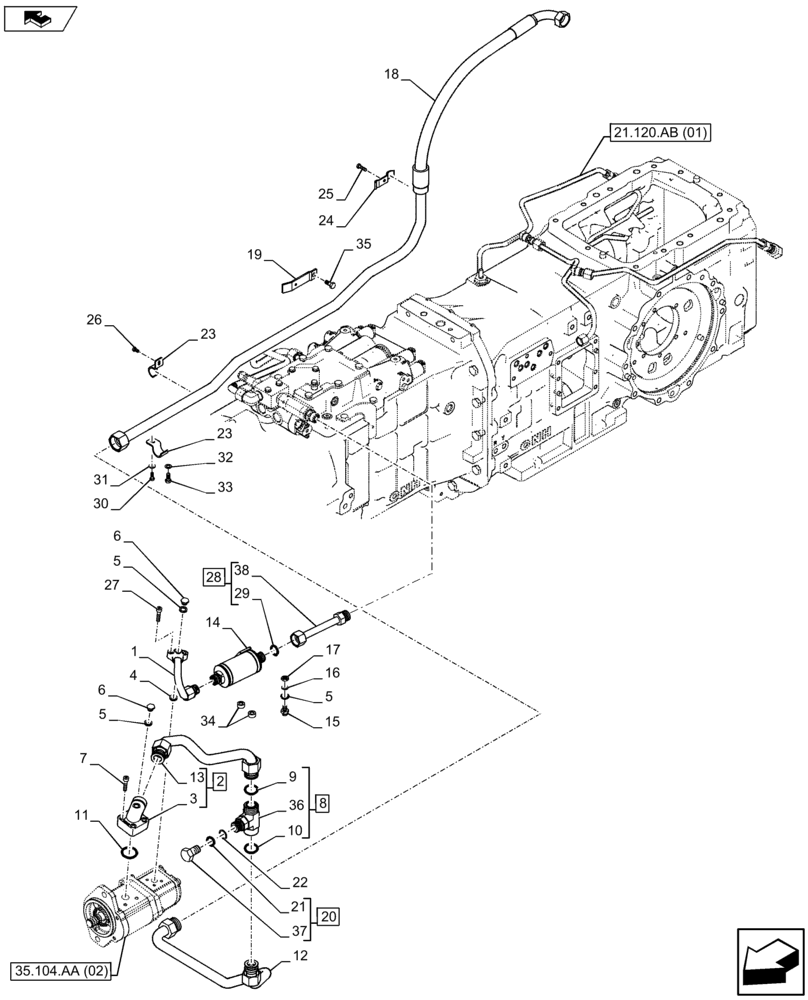

Запчасти Case IH FARMALL 115U (35.220.AG[01]) - VAR - 334119 - HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS

1

84564122

HYDRAULIC HOSE

1шт.

2

47510747

HYD CONNECTOR

ASSY, Incl 3, 13

1шт.

3

47505499

HYD CONNECTOR,M22 x 1.5/M27 x 3 x 54mm L

1шт.

4

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

1шт.

5

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

3шт.

6

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

2шт.

7

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

3шт.

8

84568335

HYD CONNECTOR,M27 x 2 x 84mm L

ASSY, Incl 9, 10, 36

1шт.

9

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

11

47505593

SEAL,Square, 2.62mm Thk x 34.59mm ID, 90 Duro

1шт.

12

84578876

TUBE

1шт.

13

47508580

PIPE

1шт.

14

84606407

HYDRAULIC OIL FILTER

Resounding

1шт.

15

84564689

SCREW,M10 x 1, M12 x 1.5 x 29mm L

1шт.

16

12648301

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

1шт.

17

11691311

NUT

1шт.

18

84578754

HYDRAULIC HOSE

1шт.

19

84577140

BRACKET

1шт.

20

47128782

VALVE PRESSURE RELIE

ASSY, Incl 21, 37

1шт.

21

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

22

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

23

84585106

CLAMP,R12.5mm x 25mm W

2шт.

24

84578890

CLAMP

1шт.

25

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

26

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

27

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

28

47365986

PIPE

ASSY, Incl 29, 38

1шт.

29

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

30

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

31

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

32

13507104

WASHER,9.2mm ID x 16mm OD x 1.5mm Thk

1шт.

33

16586324

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

1шт.

34

5165001

SPACER,15mm ID x 30mm OD x 8mm L

2шт.

35

18700721

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

36

NSS

NOT SOLD SEPARAT

Tee Connector, Incl in 8

1шт.

37

NSS

NOT SOLD SEPARAT

Valve, Incl in 20

1шт.

38

NSS

NOT SOLD SEPARAT

Hose, Incl in 28

1шт.
