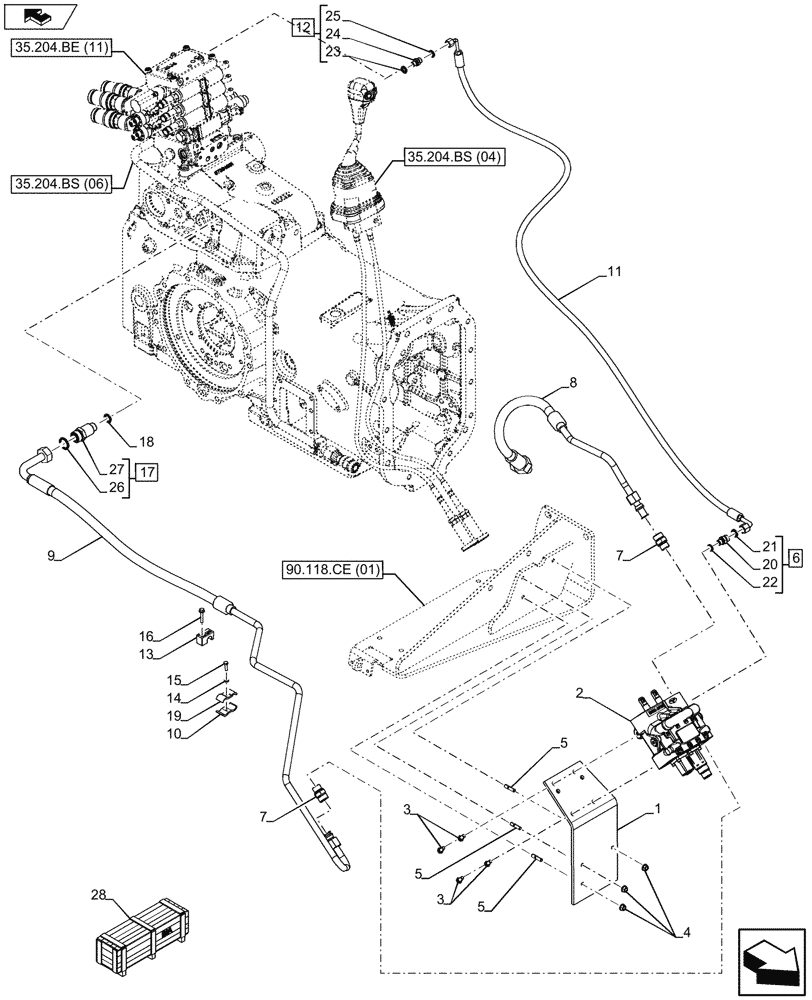

Запчасти Case IH FARMALL 115U (35.204.BS[07]) - VAR - 743919 - REMOTE VALVES (35) - HYDRAULIC SYSTEMS

1

84589736

BRACKET

1шт.

2

87696631

INCHING VALVE

1шт.

3

86625006

BOLT,Hex, M8 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

4

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

3шт.

5

13516924

STUD,M8 x 34mm L, Cl. 8.8

3шт.

6

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 20 - 22

1шт.

7

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

2шт.

8

47639871

PIPE

1шт.

9

47550560

HYD TUBE

1шт.

10

5180016

BRACKET

1шт.

11

84592149

HYDRAULIC HOSE,6.35mm ID x 1926mm L, SAE 100R16

1шт.

12

5185045

HYD CONNECTOR

ASSY, Incl 23 - 25

1шт.

13

87326640

CLAMP,16mm ID

1шт.

14

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

16

16286424

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

1шт.

17

84605368

HYD CONNECTOR

ASSY, Incl 26, 27

1шт.

18

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

19

5180153

BRACKET

1шт.

20

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

21

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

25

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

26

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

1шт.

27

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

719302080

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve for Bosch Rear Remotes, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
