(35.204.BE[09]) - VAR - 330849 - REMOTE CONTROL VALVE, BLOCK, COMPONENTS (2 REMOTES)

Запчасти Case IH FARMALL 115U (35.204.BE[09]) - VAR - 330849 - REMOTE CONTROL VALVE, BLOCK, COMPONENTS (2 REMOTES) (35) - HYDRAULIC SYSTEMS

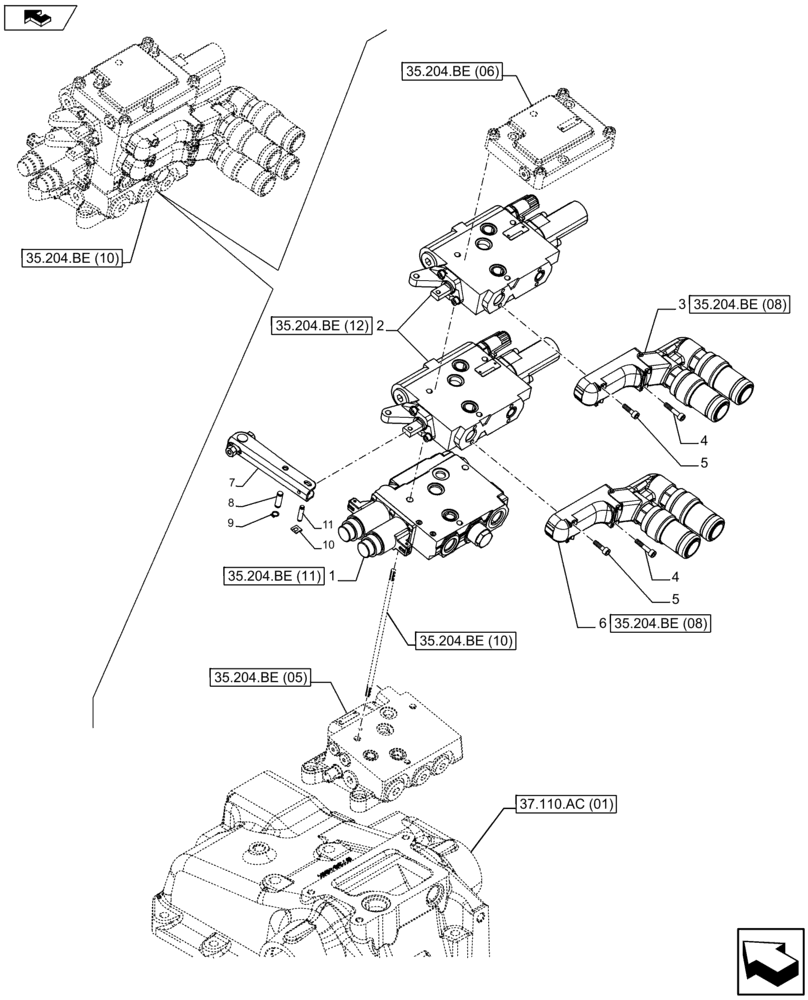

Схема запчастей Case IH FARMALL 115U - (35.204.BE[09]) - VAR - 330849 - REMOTE CONTROL VALVE, BLOCK, COMPONENTS (2 REMOTES) (35) - HYDRAULIC SYSTEMS
5
home
7
35.204.be (12)
35.204.be (10)
11
3
10
5
37.110.ac (01)
1
9
35.204.be (10)
4
6
8
4
35.204.be (08)
35.204.be (08)
35.204.be (11)
2
home
35.204.be (05)
35.204.be (06)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84175671

VALVE SECTION

1шт.

2

87546169

CONTROL VALVE

2шт.

3

87381963

QUICK MALE COUPLING

1шт.

4

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

5

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

6

87381958

QUICK MALE COUPLING

1шт.

7

47530093

CONTROL LEVER

2шт.

8

5113008

PIN,8mm OD x 26mm L

2шт.

9

11065676

SNAP RING,M8, Ext

4шт.

10

5193177

PIN,6mm OD x 29.48mm L

2шт.

11

11063971

SPRING CLIP,M6

4шт.

Выбрано товаров: 11
