(35.204.BE[08]) - VAR - 330849, 331844 - REMOTE CONTROL VALVE, BLOCK, COMPONENTS

Запчасти Case IH FARMALL 115U (35.204.BE[08]) - VAR - 330849, 331844 - REMOTE CONTROL VALVE, BLOCK, COMPONENTS (35) - HYDRAULIC SYSTEMS

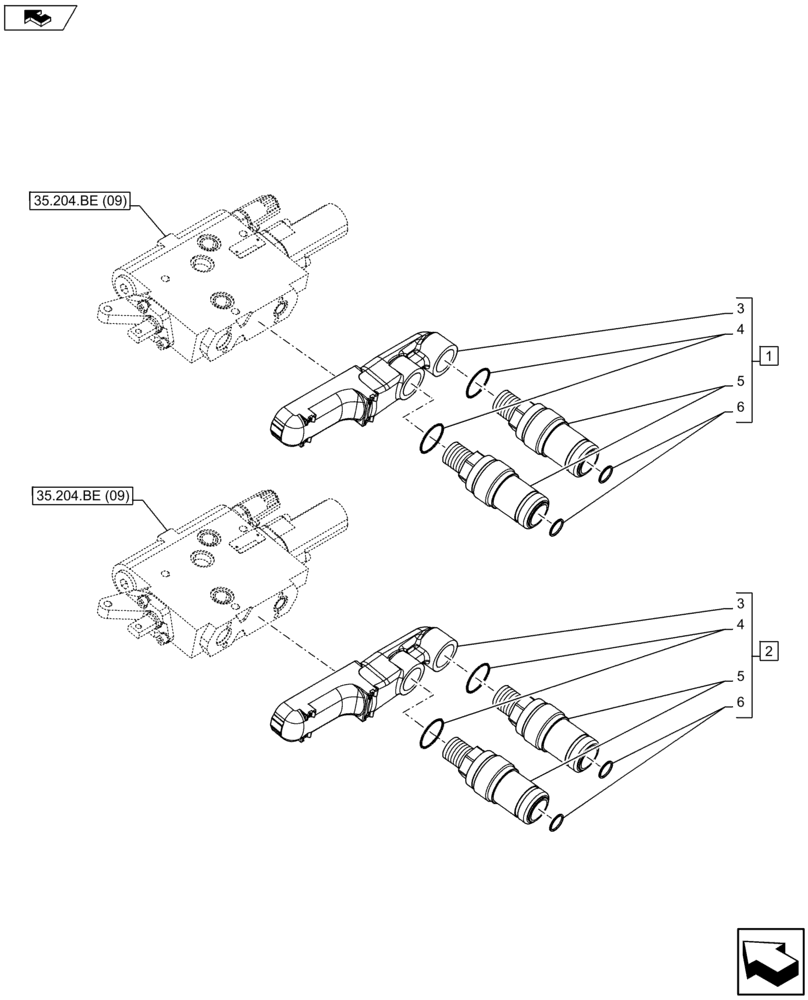

Схема запчастей Case IH FARMALL 115U - (35.204.BE[08]) - VAR - 330849, 331844 - REMOTE CONTROL VALVE, BLOCK, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.204.be (09)
6
1
2
4
3
6
5
35.204.be (09)
home
3
4
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87381963

QUICK MALE COUPLING

ASSY, Incl 3 - 6

1шт.

2

87381958

QUICK MALE COUPLING

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 1 or 2

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

47370116

COUPLING

2шт.

6

87382012

SEAL KIT

1шт.
