(35.204.BB[02]) - VAR - 330849 - CONTROL VALVE, ATTACHMENT

Запчасти Case IH FARMALL 115U (35.204.BB[02]) - VAR - 330849 - CONTROL VALVE, ATTACHMENT (35) - HYDRAULIC SYSTEMS

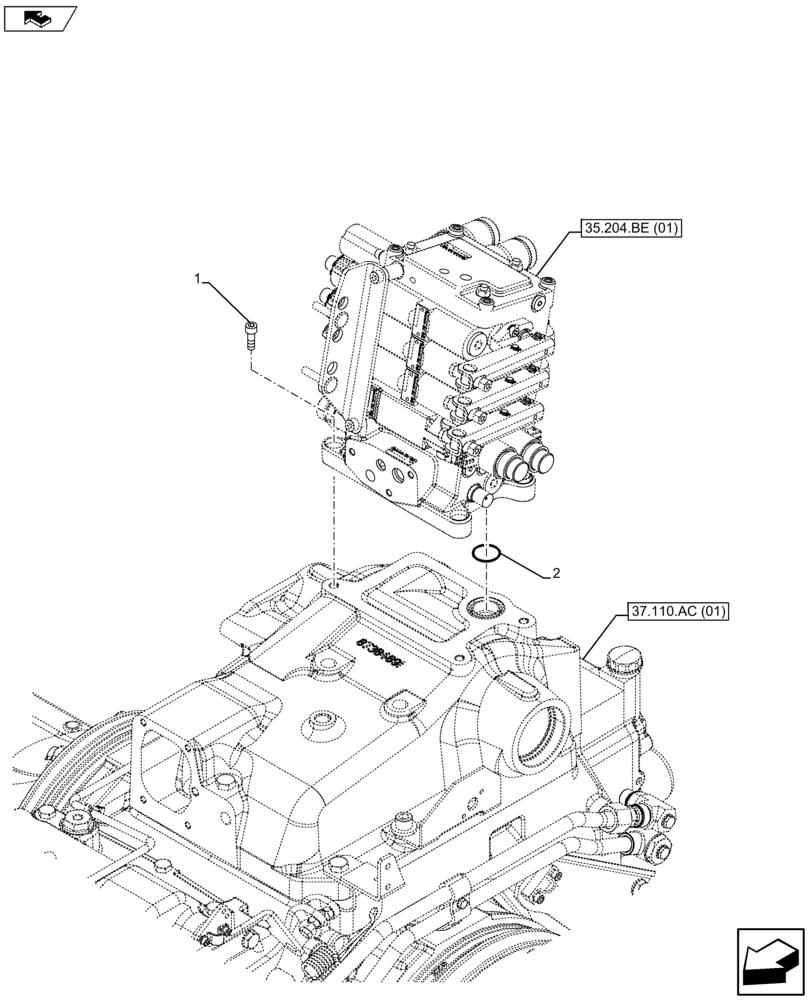

Схема запчастей Case IH FARMALL 115U - (35.204.BB[02]) - VAR - 330849 - CONTROL VALVE, ATTACHMENT (35) - HYDRAULIC SYSTEMS
37.110.ac (01)
35.204.be (01)
home
2
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

2

14463881

O-RING,1.359" ID x 0.139" Width

1шт.
