(35.162.AB[04]) - VAR - 331789, 744710 - FRONT LOADER, HYDRAULIC SYSTEM

Запчасти Case IH FARMALL 115U (35.162.AB[04]) - VAR - 331789, 744710 - FRONT LOADER, HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

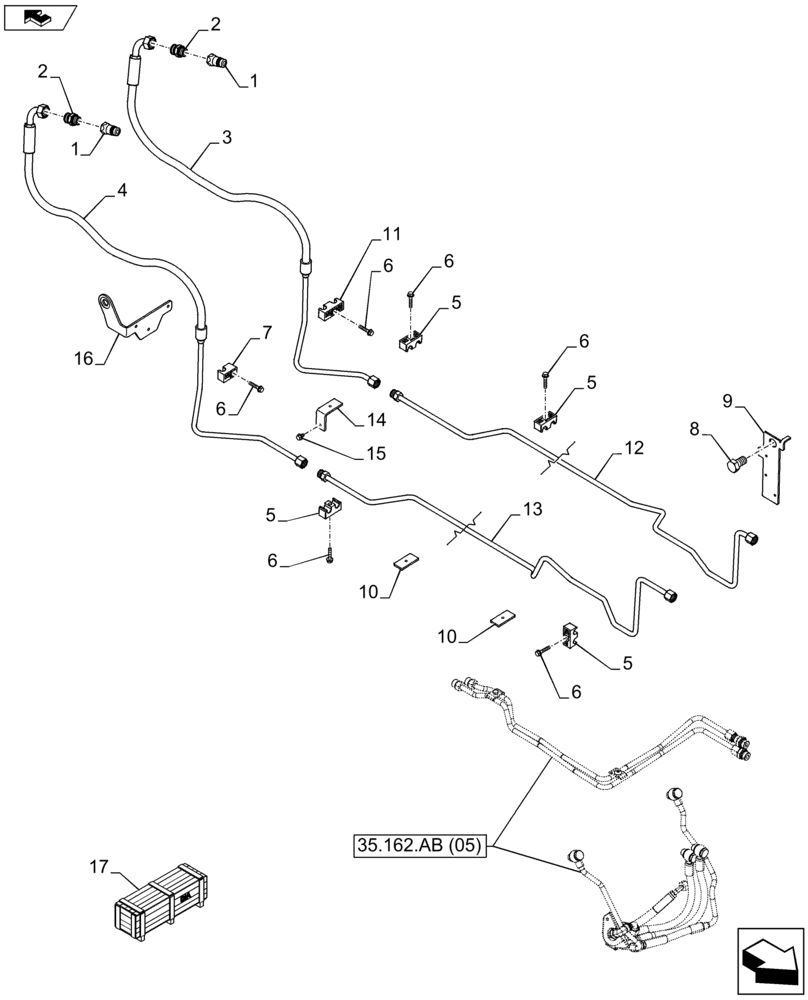

Схема запчастей Case IH FARMALL 115U - (35.162.AB[04]) - VAR - 331789, 744710 - FRONT LOADER, HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
6
1
3
10
17
8
2
6
6
11
home
6
5
5
35.162.ab (05)
13
6
5
2
7
1
9
4
12
15
5
10
16
14
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

83972881

COUPLING

2шт.

2

5185524

HYD CONNECTOR

2шт.

3

47589531

HYDRAULIC HOSE

Delivery, FHPL Raise, LH

1шт.

4

47589533

HYDRAULIC HOSE

Delivery, FHPL Raise, RH

1шт.

5

84528172

BRACKET

5шт.

6

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

6шт.

7

87532290

BRACKET

1шт.

8

15987724

SCREW

1шт.

9

47548554

BRACKET

1шт.

10

84534676

BRACKET

2шт.

11

87325889

BRACKET

1шт.

12

47589536

PIPE

Delivery, FHPL Raise, LH

1шт.

13

47589538

PIPE

Delivery, FHPL Raise, RH

1шт.

14

47589540

BRACKET

1шт.

15

87015907

BOLT,M6 x 10mm, Full Thd, 8.8 PHC

1шт.

16

84596216

BRACKET

1шт.

17

718746080

DIA KIT, TRACTOR

FHPL Chassis Mounted S/A less FPTO (Multifunctional Axle Support), Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718747080

DIA KIT, TRACTOR

FHPL Chassis Mounted S/A with FPTO (Multifunctional Axle Support), Incl 1 - 16

1шт.
