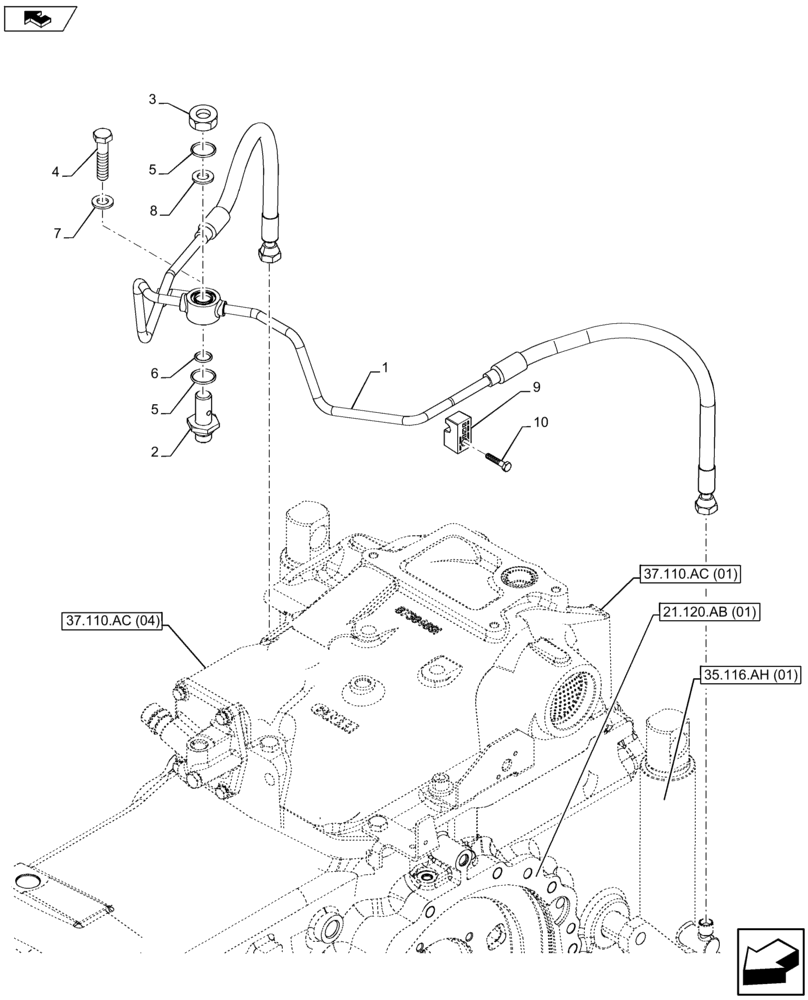

Запчасти Case IH FARMALL 115U (35.116.AD[01]) - VAR - 743597 - PIPE FOR TWO AUX RAMS (35) - HYDRAULIC SYSTEMS

1

47406271

HYD TUBE

2 Auxiliary Rams

1шт.

2

84403942

BANJO BOLT

1шт.

3

84403943

PIPE PLUG

1шт.

4

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

5

14457780

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

8

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

9

84368933

BRACKET

1шт.

10

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.
