(35.100.AR[02]) - VAR - 330849 - ELECTRONIC LIFT, REAR, DELIVERY PIPE

Запчасти Case IH FARMALL 115U (35.100.AR[02]) - VAR - 330849 - ELECTRONIC LIFT, REAR, DELIVERY PIPE (35) - HYDRAULIC SYSTEMS

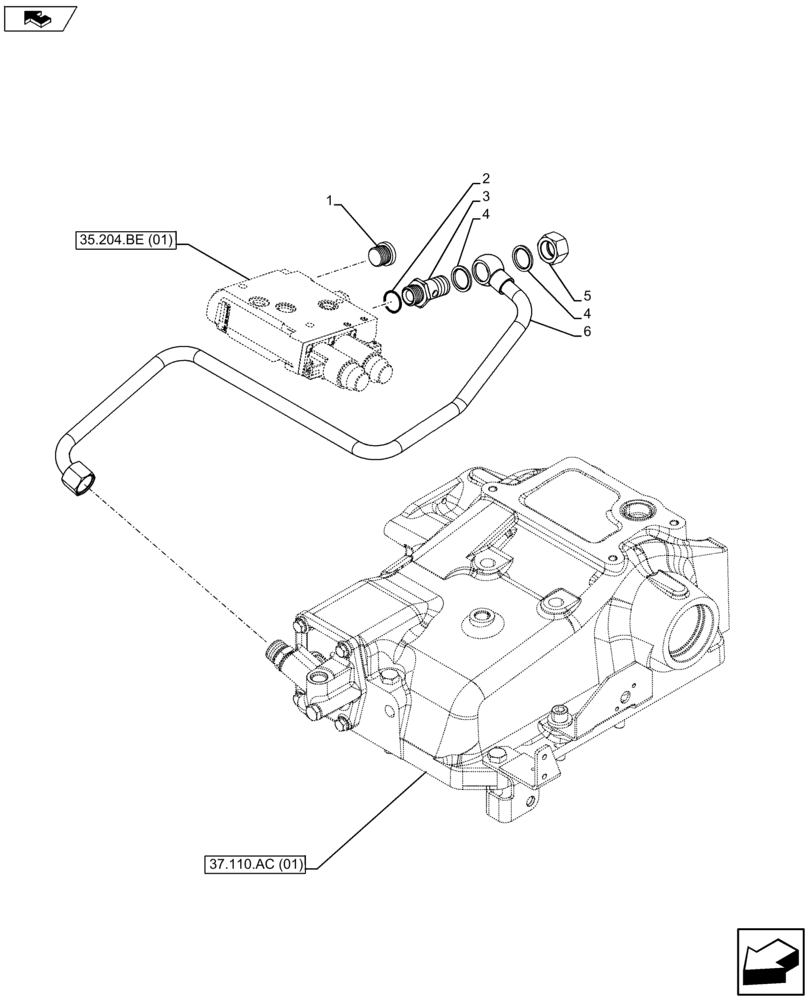

Схема запчастей Case IH FARMALL 115U - (35.100.AR[02]) - VAR - 330849 - ELECTRONIC LIFT, REAR, DELIVERY PIPE (35) - HYDRAULIC SYSTEMS
2
6
35.204.be (01)
4
home
37.110.ac (01)
1
home
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

3

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

1шт.

4

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

5

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

1шт.

6

47488104

PIPE

Delivery

1шт.

Выбрано товаров: 6
