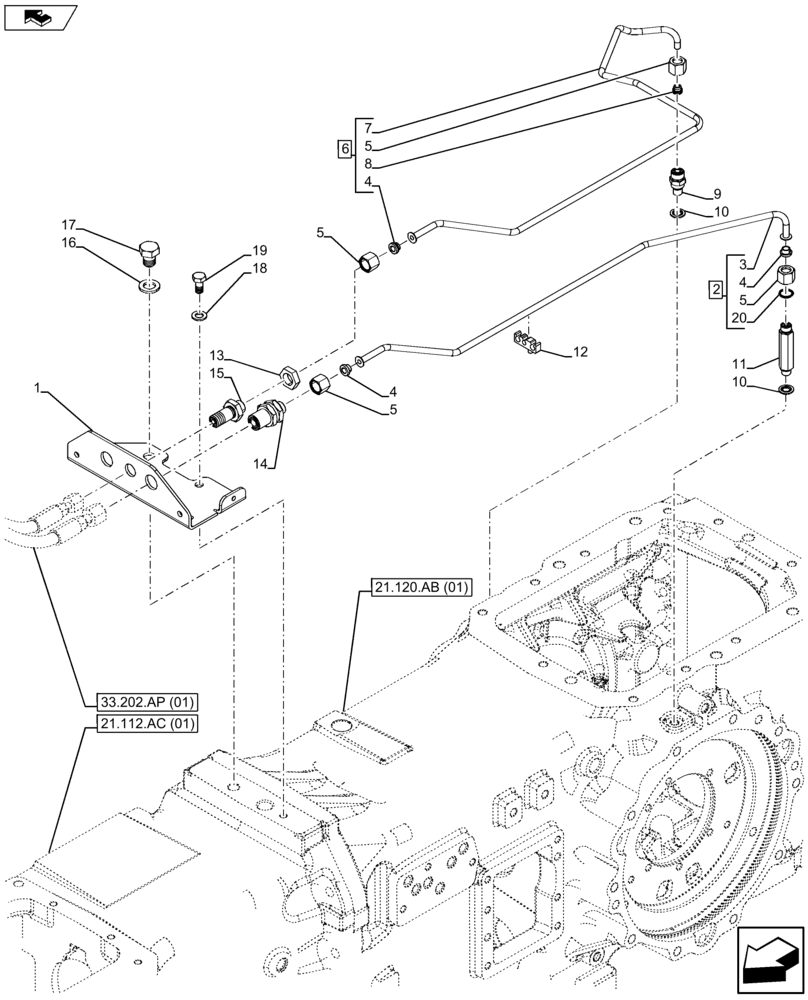

Запчасти Case IH FARMALL 115U (33.202.AP[02]) - VAR - 333166, 390166 - BRAKES CONTROL PIPES - ADAPTER (33) - BRAKES & CONTROLS

1

47394426

BRACKET

1шт.

2

47404768

TUBE

LH, ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Tube, Incl in 2

1шт.

4

84052986

COLLAR,8mm ORFS

2шт.

5

84052987

TUBE NUT,11/16"-16 x 17mm L

2шт.

6

47391786

PIPE

RH, ASSY, Incl 4, 5, 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Tube, Incl in 6

1шт.

8

87644284

SLEEVE,8.15mm OD

1шт.

9

47131549

FITTING,M12 x 1.5

1шт.

10

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

11

47495312

HYD CONNECTOR

1шт.

12

14579580

CLIP

1шт.

13

87010704

BHD LOCK NUT,11/16"-16

1шт.

14

87711900

HYD CONNECTOR

1шт.

15

86978770

UNION,11/16"-6, ORFS

1шт.

16

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

17

15983121

SCREW,Hex, M16 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

18

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

19

86637962

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

20

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.
