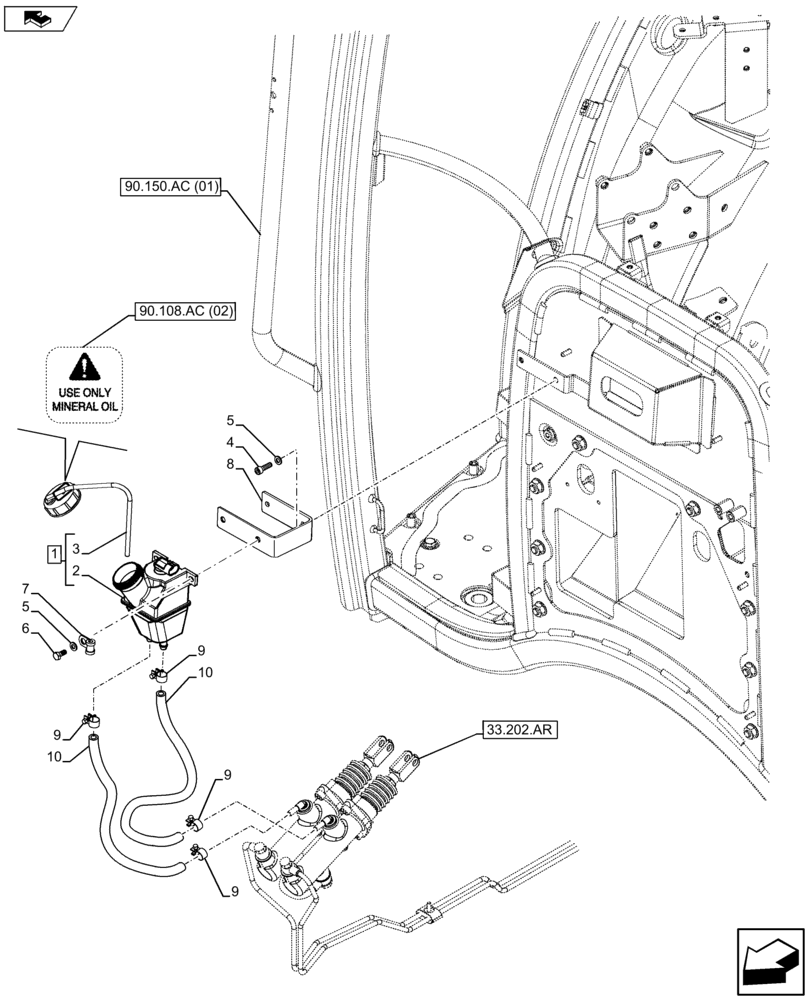

Запчасти Case IH FARMALL 115U (33.202.AN[01]) - VAR - 335683 - BRAKE RESERVOIR & LINES (33) - BRAKES & CONTROLS

1

47609929

BRAKE FLUID TANK

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Reservoir, Incl in 1

1шт.

3

47610925

FILLER CAP,Male, Vented, Lockable

1шт.

4

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

5

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

6

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

7

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

1шт.

8

47364837

BRACKET

1шт.

9

81864605

HOSE CLAMP,11.5mm - 14.75mm

4шт.

10

84234050

FLEXIBLE HOSE,Black, 7mm ID x 270mm L

2шт.
