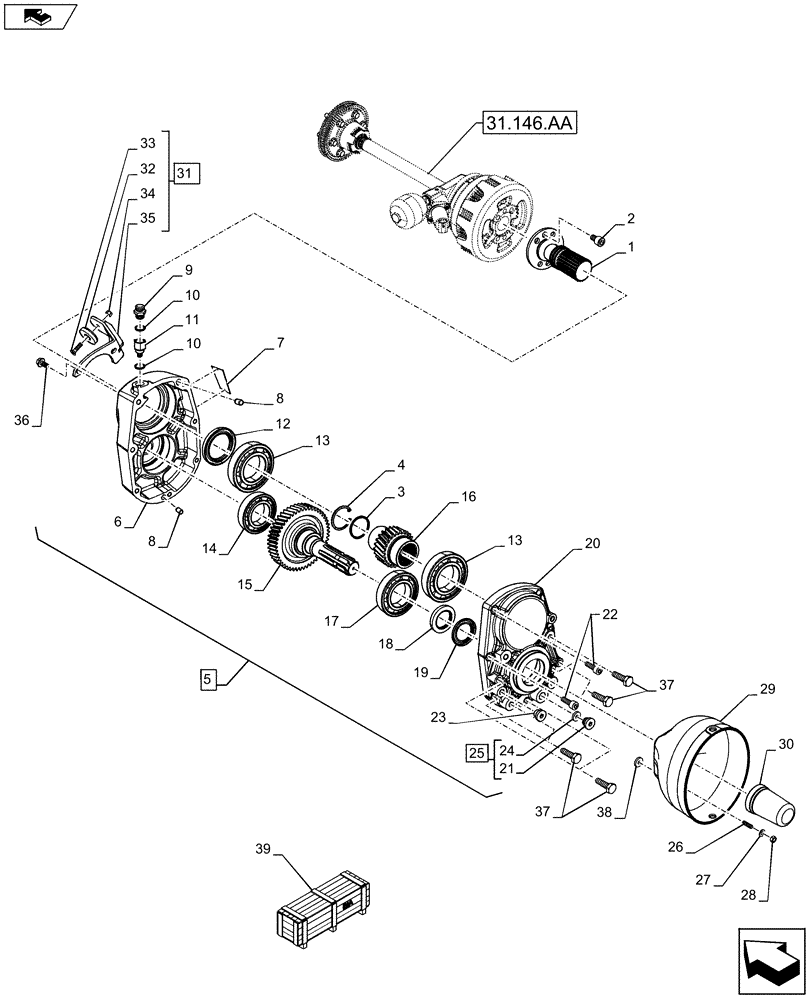

Запчасти Case IH FARMALL 115U (31.146.AR) - VAR - 744710 - FRONT PTO, ENGINE, GEARBOX (31) - IMPLEMENT POWER TAKE OFF

1

84548419

SHAFT

1шт.

2

84603135

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 12.9

6шт.

3

9820460

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

4

370011

CIRCLIP,M52 x 2mm Thk, Internal

1шт.

5

84313806

GEARBOX

ASSY, Incl 6 - 25

1шт.

6

84313808

HOUSING

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Incl in 5

1шт.

8

10839710

DOWEL,M10 x 15.00mm

2шт.

9

87560100

BREATHER,M18 x 1.5mm

1шт.

10

10261560

OIL SEAL,M18 ID x 22mm OD x 1.5mm Thk

2шт.

11

47437764

BREATHER,M18 x 1.5

1шт.

12

5119540

SEAL,60mm ID x 85mm OD x 8mm Thk

1шт.

13

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

2шт.

14

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.

15

84313812

GEAR,48T

1шт.

16

84313811

GEAR,25T

1шт.

17

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

18

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

1шт.

19

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

1шт.

20

84313810

HOUSING

1шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 25

1шт.

22

14307634

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 10.9, Full Thd

7шт.

23

86598043

PLUG,M12 x 1.5 ORB

1шт.

24

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

25

1009480

PLUG,Hex, M18 x 1.5

ASSY, Incl 21, 24

1шт.

26

13516624

STUD,M8 x 28mm L

2шт.

27

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

28

43362

NUT,M8 x 1.25, Cl 10

2шт.

29

84556976

PROTECTING COVER

1шт.

30

5165104

COVER

1шт.

31

47527662

BRACKET

ASSY, Incl 32 - 35

1шт.

32

47508595

MAGNET

1шт.

33

14442231

SCREW,Flat Csk Hd, M8 x 1.25 x 30mm, Cl 10.9

1шт.

34

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

35

47508578

BRACKET

1шт.

36

16288324

FLANGE BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

37

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

6шт.

38

86592699

WASHER,8.4mm ID x 23mm OD x 4mm Thk

2шт.

39

718823080

DIA KIT, TRACTOR

Front PTO less FHPL (Multifunctional Axle Support), Incl 1 - 38

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
