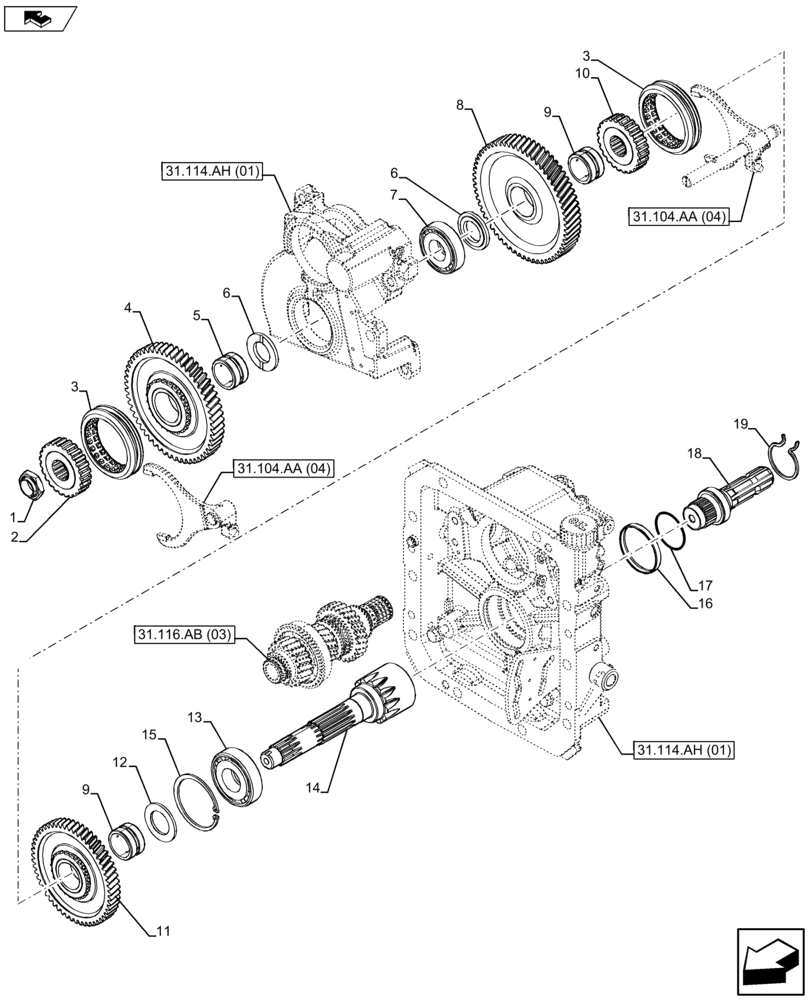

Запчасти Case IH FARMALL 115U (31.116.AB[04]) - VAR - 331729 - PTO, DRIVEN SHAFT, 3 SPEED, NA (31) - IMPLEMENT POWER TAKE OFF

1

5100183

LOCK NUT,Hex, M328 x 1.5, Cl 8.8

1шт.

2

5162794

GEAR,12T Internal / 24T External

1шт.

3

5129513

SYNCHRONIZER,24T

2шт.

4

47124071

GEAR,54T

1шт.

5

5162787

RING RACE

1шт.

6

5162811

THRUST WASHER,35.1mm ID x 62mm OD x 6.5mm Thk

2шт.

7

47128681

BUSHING,35mm ID x 81mm OD x 21.0mm L

1шт.

8

84483099

GEAR,24T/ 61T

1шт.

9

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

10

5129512

SLEEVE,24T, 14T

1шт.

11

84483100

GEAR,52T/ 90T

1шт.

12

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

13

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

14

47398461

DRIVE SHAFT

1шт.

15

11062476

SNAP RING,M90, Int

1шт.

16

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

1шт.

17

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

18

47133081

PTO SHAFT

540 RPM

1шт.

18

47133076

PTO SHAFT,162mm L

1000 RPM

1шт.

19

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.
