(27.120.AI[03]) - VAR - 390319 - SIDE FINAL DRIVES HOUSING

Запчасти Case IH FARMALL 115U (27.120.AI[03]) - VAR - 390319 - SIDE FINAL DRIVES HOUSING (27) - REAR AXLE SYSTEM

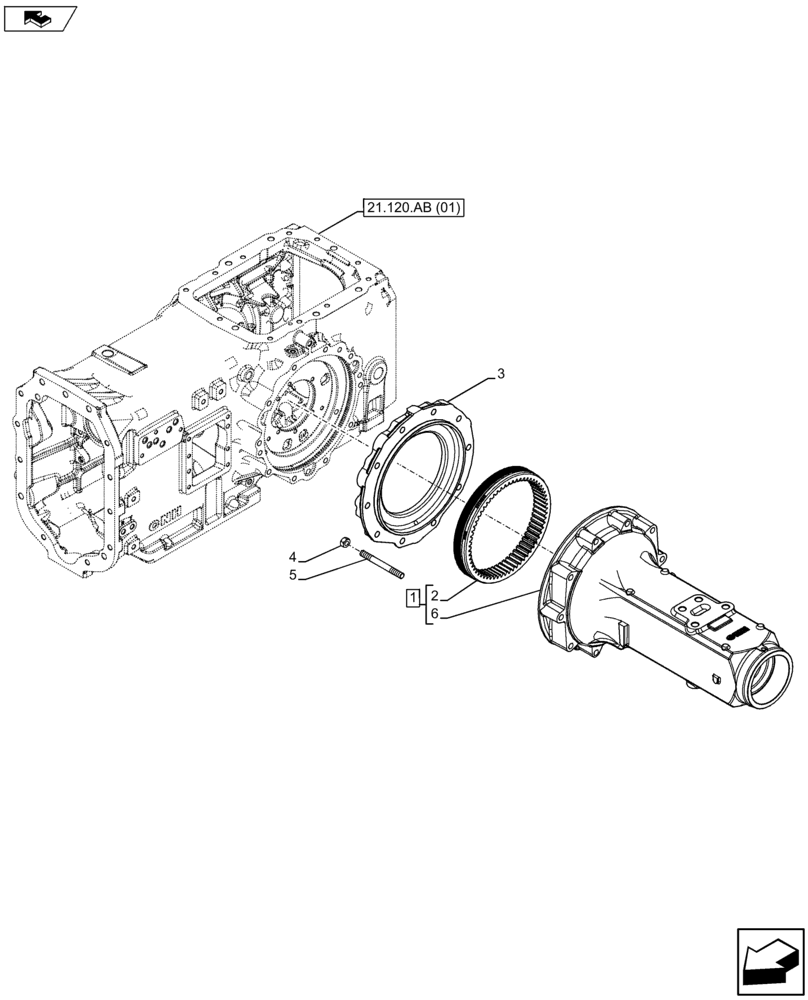

Схема запчастей Case IH FARMALL 115U - (27.120.AI[03]) - VAR - 390319 - SIDE FINAL DRIVES HOUSING (27) - REAR AXLE SYSTEM
2
5
21.120.ab (01)
6
3
4
home
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84554072

AXLE HOUSING

ASSY, Incl 2, 6

2шт.

2

84552800

RING GEAR

1шт.

3

84548802

SPACER

2шт.

4

13976130

STUD

6шт.

5

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

6шт.

6

84548331

AXLE HOUSING

1шт.
