(27.120.AI[02]) - VAR - 334144 - SIDE FINAL DRIVE HOUSING

Запчасти Case IH FARMALL 115U (27.120.AI[02]) - VAR - 334144 - SIDE FINAL DRIVE HOUSING (27) - REAR AXLE SYSTEM

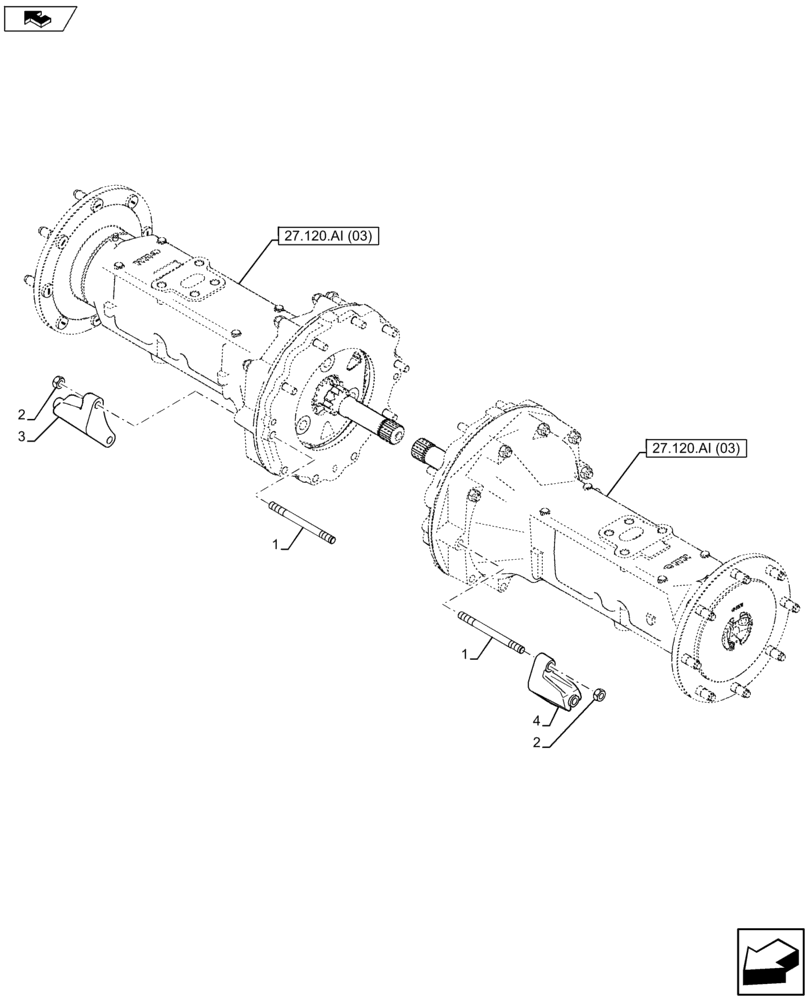

Схема запчастей Case IH FARMALL 115U - (27.120.AI[02]) - VAR - 334144 - SIDE FINAL DRIVE HOUSING (27) - REAR AXLE SYSTEM
27.120.ai (03)
3
1
2
2
1
27.120.ai (03)
4
home
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13557730

STUD,M14 x 1.5 x 20mm x 145mm, Cl 10.9

4шт.

2

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

4шт.

3

84580651

BRACKET

RH

1шт.

4

84580652

BRACKET

LH

1шт.

Выбрано товаров: 4
