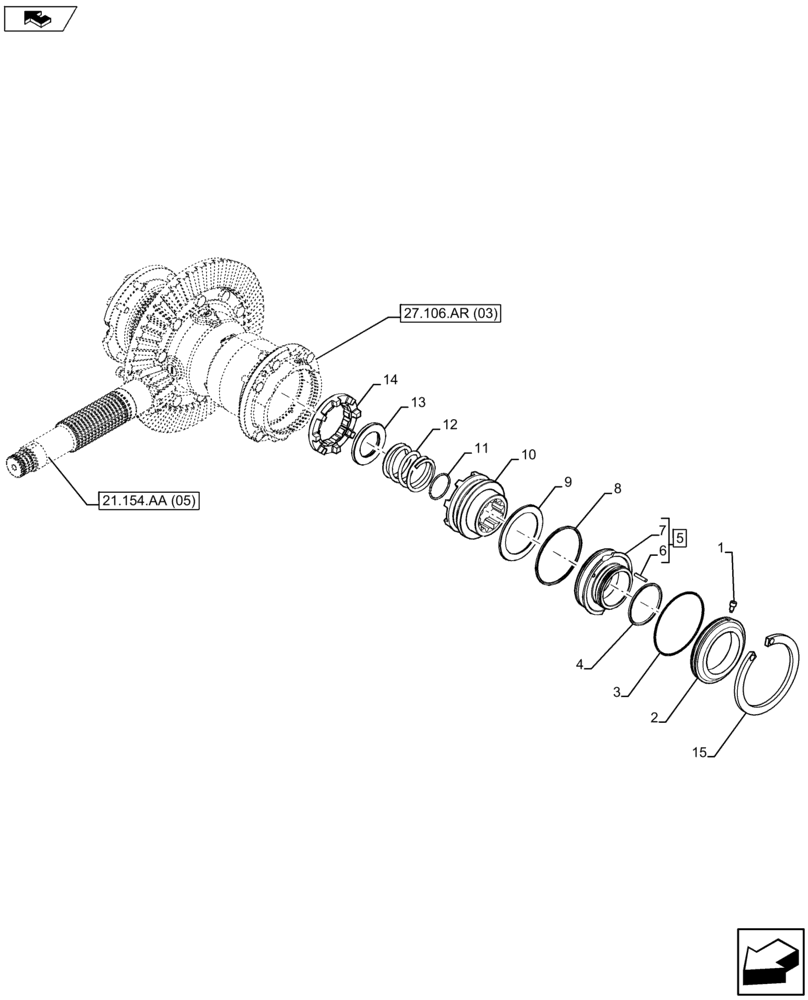

Запчасти Case IH FARMALL 115U (27.106.AR[04]) - VAR - 390399 - DIFFERENTIAL GEAR, COMPONENTS (27) - REAR AXLE SYSTEM

1

5166386

SET SCREW,M6 x 1 x 11.5mm, Cl 8.8

1шт.

2

47484191

SPACER

1шт.

3

14461480

O-RING,4.237" ID x 0.103" Thk

1шт.

4

5168345

SEAL,67.55mm ID x 75mm OD x 3.2mm Thk

1шт.

5

47386487

PISTON

ASSY, Incl 6, 7

1шт.

6

10335110

PIN,5mm OD x 25mm L

2шт.

7

NSS

NOT SOLD SEPARAT

Piston, Incl in 5

1шт.

8

5199232

SEALING RING

1шт.

9

87681968

BEARING ASSY

1шт.

10

84592419

SLEEVE

1шт.

11

13399170

SNAP RING,M45, Int

1шт.

12

47421411

COMPRESSION SPRING

1шт.

13

87634516

SPACER

1шт.

14

47386408

SLEEVE

1шт.

15

47493312

SNAP RING

1шт.
