(27.106.AO) - VAR - 330308 - DIFFERENTIAL LOCK, FRONT, HYD. LINE

Запчасти Case IH FARMALL 115U (27.106.AO) - VAR - 330308 - DIFFERENTIAL LOCK, FRONT, HYD. LINE (27) - REAR AXLE SYSTEM

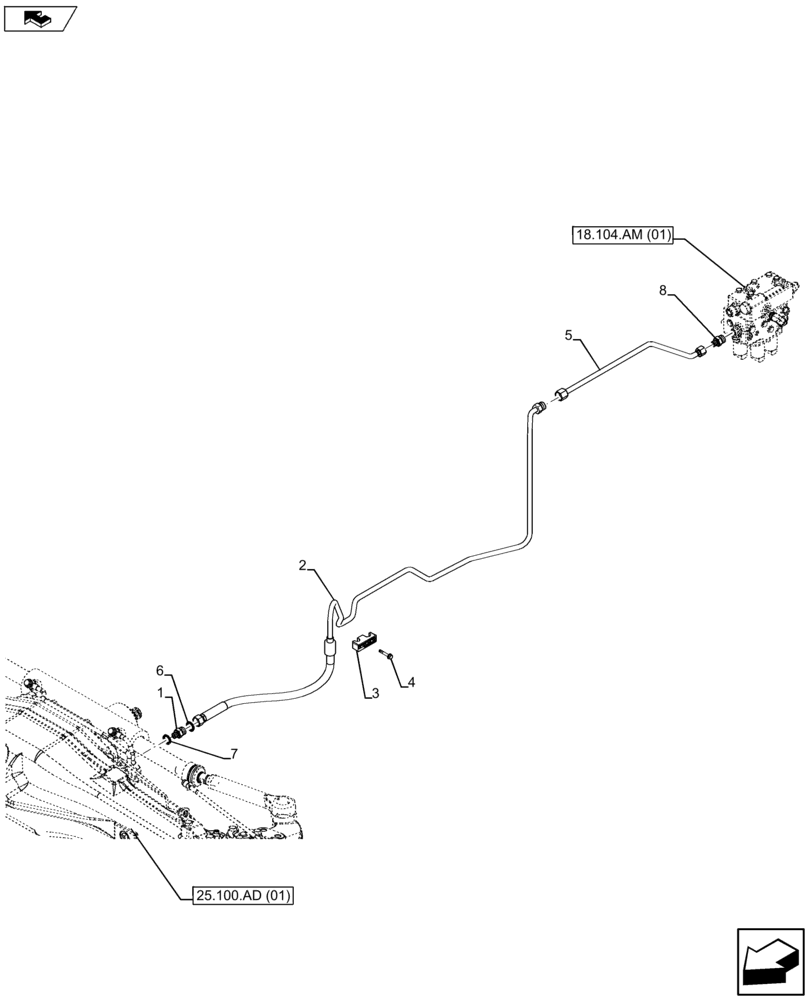

Схема запчастей Case IH FARMALL 115U - (27.106.AO) - VAR - 330308 - DIFFERENTIAL LOCK, FRONT, HYD. LINE (27) - REAR AXLE SYSTEM
2
6
25.100.ad (01)
5
home
18.104.am (01)
1
7
8
3
4
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87668379

HYD CONNECTOR,13/16"-16 x 22mm L

1шт.

2

47493131

HYD TUBE

Front Differential Lock

1шт.

3

87694267

BLOCK

1шт.

4

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

1шт.

5

84577728

TUBE

Front Differential Lock

1шт.

6

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

Выбрано товаров: 8
