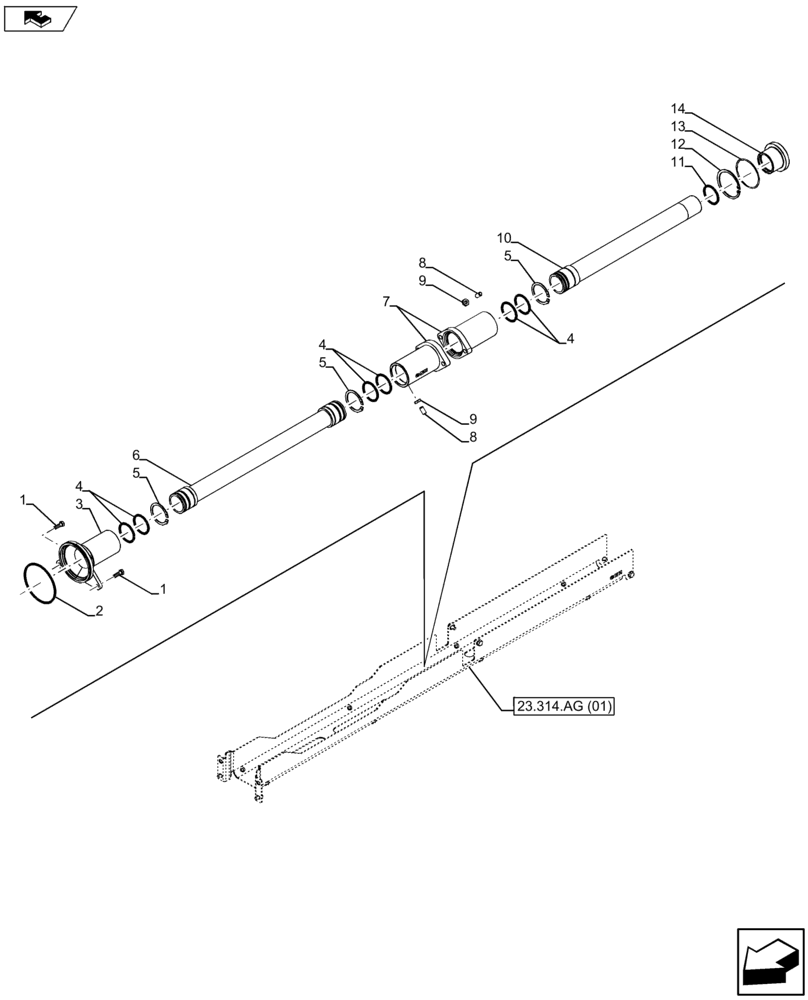

Запчасти Case IH FARMALL 115U (23.314.AG[02]) - VAR - 330448 - PROTECTION TRANSM. SHAFT - WATERPROOF - ISO (23) - FOUR WHEEL DRIVE SYSTEM

1

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

2

14461480

O-RING,4.237" ID x 0.103" Thk

1шт.

3

47124556

SLEEVE,57mm ID x 66mm OD x 104.0mm L

1шт.

4

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

6шт.

5

11069676

SNAP RING,M56, Ext

3шт.

6

84605292

GUARD

1шт.

7

87534292

FLANGE

2шт.

8

13809631

SET SCREW,Hex Soc, M10 x 20mm, Flat Pt

2шт.

9

10791024

THIN NUT,Thin, M10 x 1.25, Cl 05

2шт.

10

47364677

GUARD

1шт.

11

14459381

O-RING,48.9mm ID x 2.62" Width

1шт.

12

11061976

SNAP RING,M80, Int

1шт.

13

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

14

47125477

BUSHING

1шт.
