(23.314.AE[02]) - VAR - 390399 - HOUSING RELAY GEARING

Запчасти Case IH FARMALL 115U (23.314.AE[02]) - VAR - 390399 - HOUSING RELAY GEARING (23) - FOUR WHEEL DRIVE SYSTEM

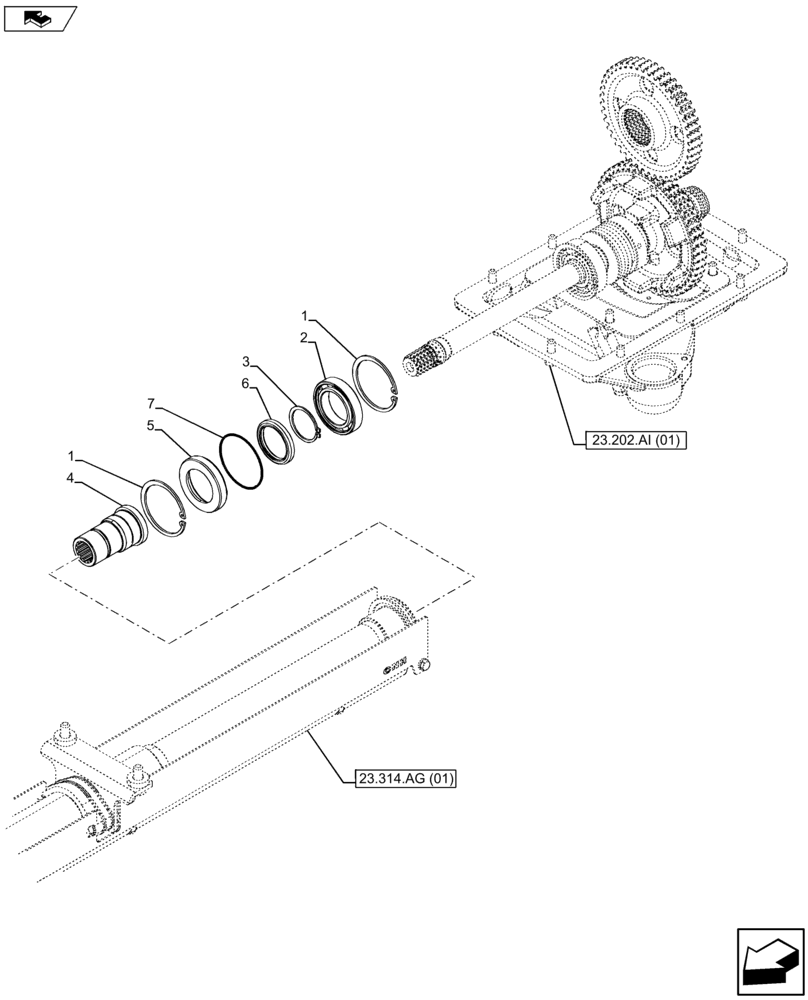

Схема запчастей Case IH FARMALL 115U - (23.314.AE[02]) - VAR - 390399 - HOUSING RELAY GEARING (23) - FOUR WHEEL DRIVE SYSTEM
1
3
home
2
home
6
23.314.ag (01)
5
1
23.202.ai (01)
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11061976

SNAP RING,M80, Int

2шт.

2

28042500

BALL BEARING,50mm x 80mm x 16mm

1шт.

3

11069376

SNAP RING,M50, Ext

1шт.

4

5196514

SLEEVE,14T

1шт.

5

5194367

SEALING RING

1шт.

6

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

1шт.

7

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.
