Запчасти Case IH FARMALL 115U (23.202.AD[01]) - VAR - 330448 - TRASMISSION SHAFT TO FRONT AXLE - WATERPROOF (23) - FOUR WHEEL DRIVE SYSTEM

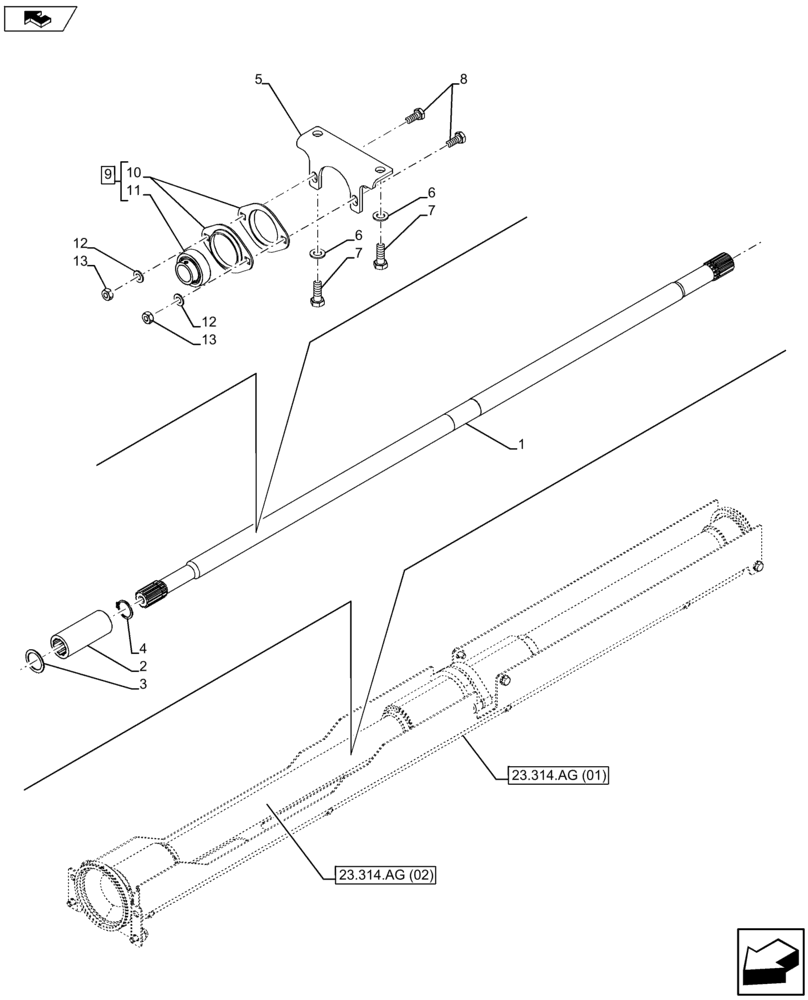

Схема запчастей Case IH FARMALL 115U - (23.202.AD[01]) - VAR - 330448 - TRASMISSION SHAFT TO FRONT AXLE - WATERPROOF (23) - FOUR WHEEL DRIVE SYSTEM
23.314.ag (02)
11
13
9
5
7
13
12
3
home
7
8
1
12
10
23.314.ag (01)
2
4
6
home
6

Артикул

Название

Примечание

Количество

1

84567825

SHAFT

1шт.

2

84582085

SPLINED COUPLING

1шт.

3

4997301

SHIM,29mm ID x 40mm OD x 2.2mm Thk

1шт.

3

5158051

SHIM,29.6mm ID x 40mm OD x 1.5mm Thk

1шт.

3

5158052

SHIM,29.6mm ID x 40mm OD x 1.9mm Thk

1шт.

3

4997302

SHIM,29mm ID x 40mm OD x 2.5mm Thk

1шт.

3

4997303

SHIM,29mm ID x 40mm OD x 2.8mm Thk

1шт.

3

4997304

SHIM,29.6mm ID x 40mm OD x 3mm Thk

1шт.

3

4997305

SHIM,29.6mm ID x 40mm OD x 3.3mm Thk

1шт.

3

4997306

SHIM,29.6mm ID x 40mm OD x 3.7mm Thk

1шт.

3

4997307

SHIM,29.6mm ID x 40mm OD x 4mm Thk

1шт.

3

4997308

SHIM,29.6mm ID x 40mm OD x 4.3mm Thk

1шт.

4

11067776

SNAP RING,M29, Ext

1шт.

5

5178213

SUPPORT

1шт.

6

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

7

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

2шт.

8

15970711

SCREW,M10 x 1.25 x 25

2шт.

9

5167098

BEARING ASSY,30mm ID

Incl 10, 11

1шт.

10

5174610

SHELL

2шт.

11

5174609

BALL BEARING

1шт.

12

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

13

12164714

NUT,M10 x 1.25, Cl 8

2шт.

Выбрано товаров: 22
