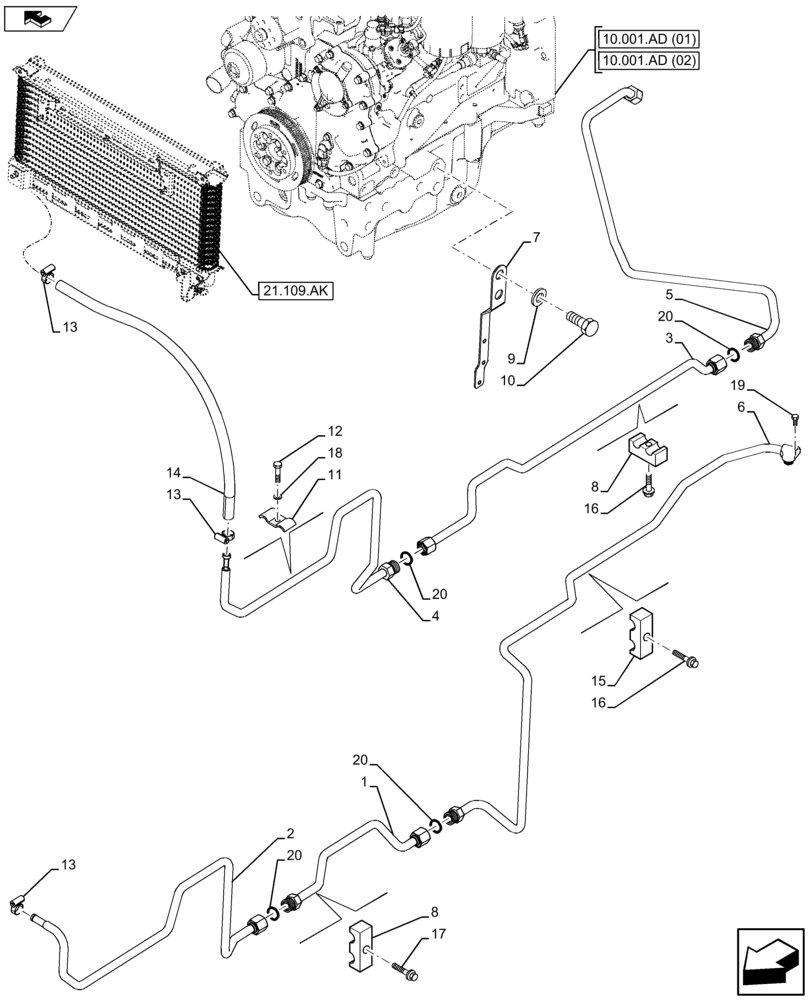

Запчасти Case IH FARMALL 115U (21.109.AD) - VAR - 336816, 390174 - OIL COOLER LINE (21) - TRANSMISSION

1

84584553

TUBE

Delivery To Cooler

1шт.

2

47703084

PIPE

To Cooler

1шт.

3

84584555

PIPE

Return From Cooler

1шт.

4

47703078

PIPE

From Cooler

1шт.

5

84577447

PIPE

Return, Oil Cooler

1шт.

6

84584910

TUBE

Supply Cooler

1шт.

7

47504964

BRACKET

1шт.

8

87571442

BRACKET

2шт.

9

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

2шт.

10

15987724

SCREW

2шт.

11

84475431

BRACKET

1шт.

12

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

13

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

4шт.

14

47703195

RADIATOR HOSE

1шт.

15

87694267

BLOCK

1шт.

16

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

17

16286424

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

1шт.

18

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

19

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

20

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.
