Запчасти Case IH FARMALL 115U (18.104.AM[01]) - VAR - 390430 - PTO, CLUTCH (18) - CLUTCH

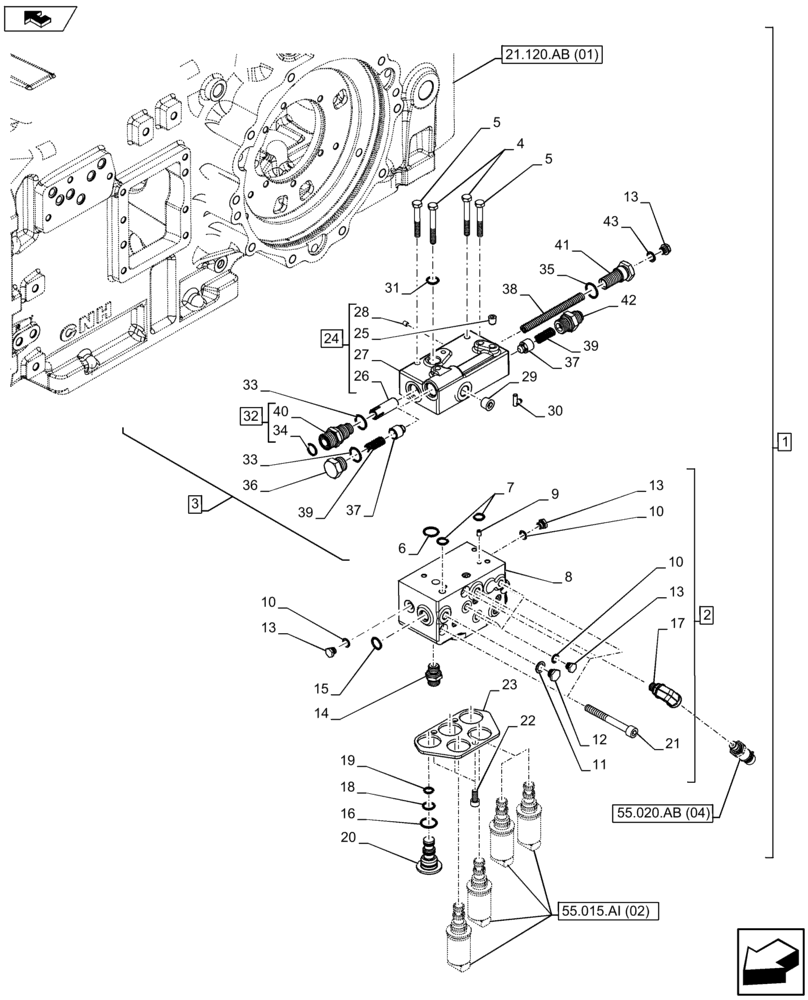

Схема запчастей Case IH FARMALL 115U - (18.104.AM[01]) - VAR - 390430 - PTO, CLUTCH (18) - CLUTCH
28
9
55.020.ab (04)
13
25
21.120.ab (01)
10
55.015.ai (02)
40
42
41
8
33
24
4
3
13
17
19
14
15
34
2
36
20
home
43
35
13
18
26
37
10
12
11
32
16
7
10
38
39
5
37
33
13
27
31
5
1
30
29
23
6
21
39
22

Артикул

Название

Примечание

Количество

1

84140162

CONTROL VALVE

ASSY, Incl 2 - 43

1шт.

2

5195591

CONTROL VALVE

ASSY, Incl 8 - 23

1шт.

3

84140153

CONTROL VALVE

ASSY, Incl 24 - 43

1шт.

4

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

2шт.

5

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

6

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

7

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

8

NSS

NOT SOLD SEPARAT

Block, Incl in 2

1шт.

9

5171508

RESTRICTOR

1шт.

10

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

5шт.

11

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

13

87535222

PLUG,Hex, M10 x 1 x 13mm

6шт.

14

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

1шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

16

14453680

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

17

87537887

90 ELBOW

1шт.

18

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

19

14453180

O-RING,12.42mm ID x 1.78mm

1шт.

20

5195316

PLUG

1шт.

21

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

22

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

23

5195317

PLATE

1шт.

24

84135997

MANIFOLD VALVE

ASSY, Incl 25 - 28

1шт.

25

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

1шт.

26

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

1шт.

27

NSS

NOT SOLD SEPARAT

Manifold, Incl in 24

1шт.

28

14536290

PLUG,6mm

1шт.

29

83931497

PLUG,3/8-18 x 0.42

1шт.

30

47137823

HYD CONNECTOR

1шт.

31

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

32

87692954

HYD CONNECTOR

ASSY, Incl 34, 40

1шт.

33

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

34

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

35

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

36

47123781

PLUG,M22 x 1.5

1шт.

37

5169565

VALVE,By-Pass

2шт.

38

5157119

SPRING,11.5mm x 127mm

1шт.

39

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

2шт.

40

NSS

NOT SOLD SEPARAT

Connector, Incl in 32

1шт.

41

84136105

PLUG,M22 x 1.5

1шт.

42

87312664

HYD CONNECTOR

1шт.

43

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

Выбрано товаров: 43
