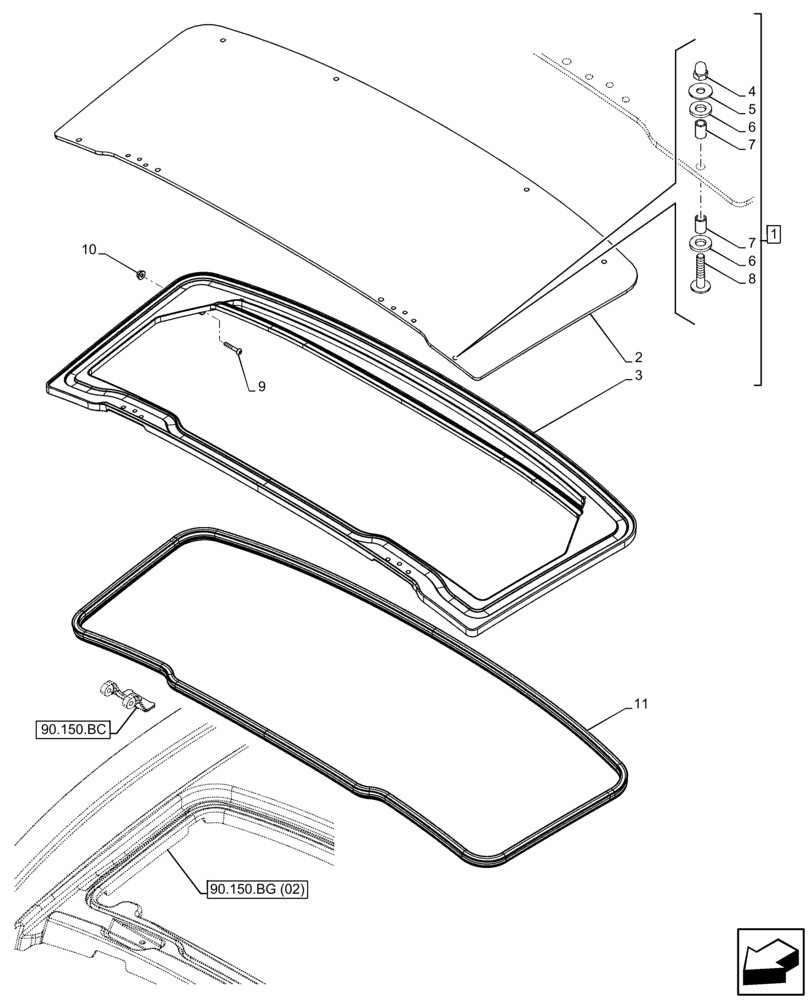

Запчасти Case IH FARMALL 115C (90.156.AY) - VAR - 334180, 334183, 334211, 743496 - ROOF, HATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47402688

WINDOW

ASSY, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Glass, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Frame, Incl in 1

1шт.

4

47555944

NUT,Dome Hex, M5

M5

8шт.

5

47555880

WASHER,5.3mm ID x 15mm OD x 1mm Thk

15mm OD x 5.3mm ID x 1mm H

8шт.

6

47555678

RUBBER SEAL,7mm ID x 14mm OD x 2mm Thk

14mm OD x 7mm ID x 2mm H

16шт.

7

47555740

SPACER,5mm ID x 7mm OD x 10mm L

7mm OD x 5mm ID x 10mm H

16шт.

8

47555755

SCREW,Pan, M5 x 25mm L

M8 x 25

8шт.

9

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

2шт.

10

80043416

NUT,M5

M5

2шт.

11

84272323

RUBBER SEAL,2605mm L

Hatch

1шт.
