Запчасти Case IH FARMALL 115C (50.200.AB) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - AIR CONDITIONER, LINE, CAB (50) - CAB CLIMATE CONTROL

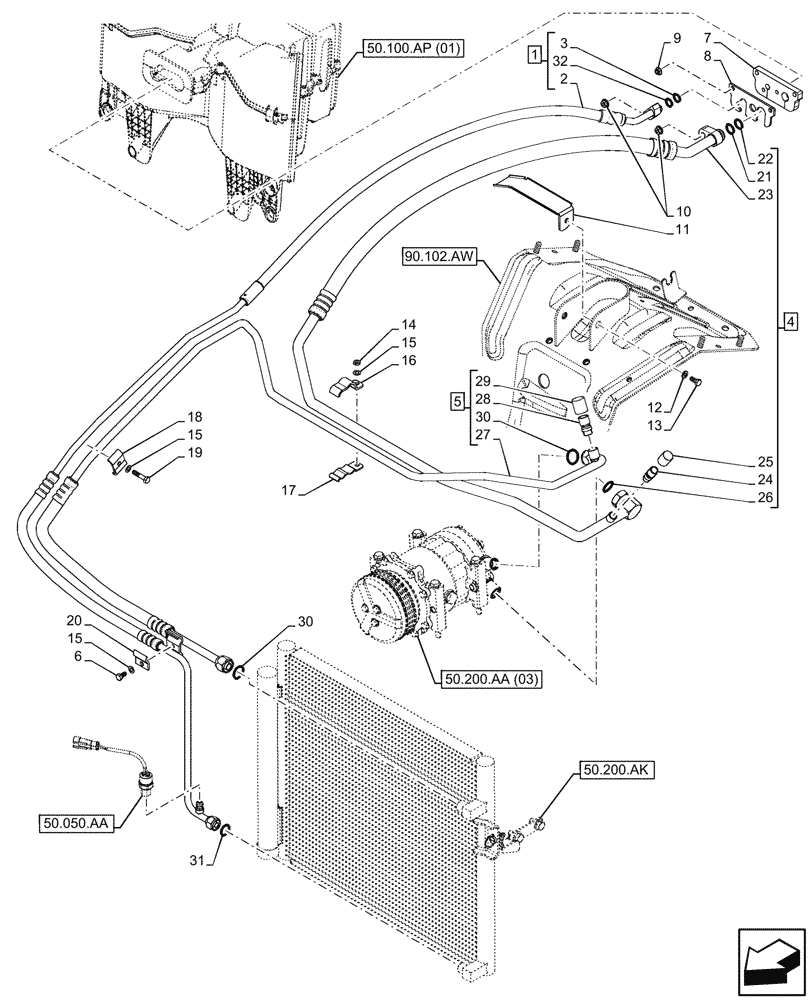

Схема запчастей Case IH FARMALL 115C - (50.200.AB) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - AIR CONDITIONER, LINE, CAB (50) - CAB CLIMATE CONTROL
90.102.aw
21
8
17
9
3
14
15
28
20
13
15
1
7
16
11
32
15
2
18
19
23
5
26
22
4
27
10
12
6
30
30
24
29
25
31
55.050.aa
50.100.ap (01)
50.200.aa (03)
50.200.ak

Артикул

Название

Примечание

Количество

1

84474275

A/C HOSE

ASSY, from Condenser to Heater, Incl 2, 3, 31, 32

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

14450483

O-RING,1.8mm Thk x 6.7mm ID

1шт.

4

84474261

A/C HOSE

ASSY, from Compressor to Heater, Incl 21 - 26

1шт.

5

84474263

A/C HOSE

ASSY, from Compressor to Condenser, Incl 27 - 30

1шт.

6

10902031

BOLT,Hex, M6 x 12mm, Cl 10.9

1шт.

7

47443943

GASKET

1шт.

8

47443947

PLATE

1шт.

9

13046011

NUT,Flange Hex, M5

M5 R50 ZND

2шт.

10

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

M6 Thk 8 DAC

2шт.

11

47436383

BRACKET

1шт.

12

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

13

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

14

10725914

LOCK NUT,M6 x 1, Cl 04

1шт.

15

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

3шт.

16

84577999

BRACKET

1шт.

17

84577309

BRACKET

1шт.

18

84475360

BRACKET

1шт.

19

10902734

SCREW,Hex, M6 x 28mm, Cl 10.9, Full Thd

1шт.

20

84577651

BRACKET

1шт.

21

10319983

O-RING,1.6mm Thk x 16.1mm ID

1шт.

22

14450783

O-RING,13.4mm ID x 2.4mm Width

1шт.

23

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

24

414079A1

VALVE

1шт.

25

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

1шт.

26

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

27

NSS

NOT SOLD SEPARAT

Hose, Incl in 5

1шт.

28

414082A1

CORE

1шт.

29

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

1шт.

30

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

31

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

32

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

Выбрано товаров: 32
