Запчасти Case IH FARMALL 115C (35.701.CJ) - VAR - 336731, 336733, 336735, 336739, 336741, 336743, 336745, 336747 - LOADER BUCKET, QUICK COUPLER (35) - HYDRAULIC SYSTEMS

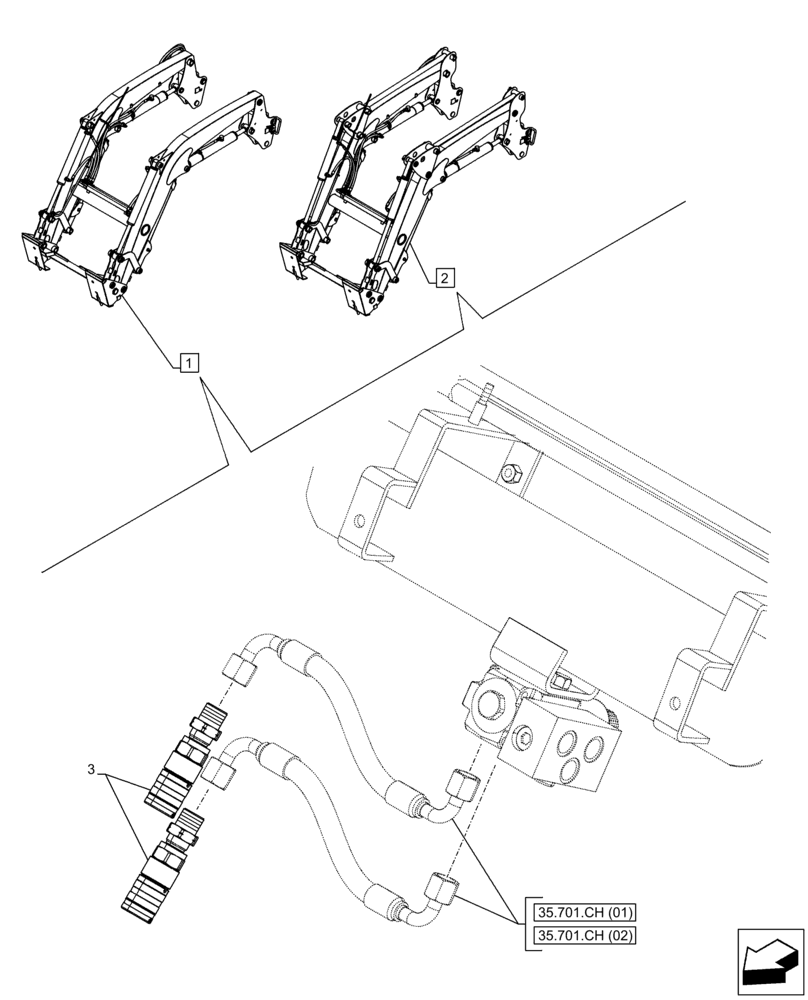

Схема запчастей Case IH FARMALL 115C - (35.701.CJ) - VAR - 336731, 336733, 336735, 336739, 336741, 336743, 336745, 336747 - LOADER BUCKET, QUICK COUPLER (35) - HYDRAULIC SYSTEMS
35.701.ch (01)
1
2
3
35.701.ch (02)

Артикул

Название

Примечание

Количество

1

47592515

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - NSL Tool Attach., Var. 336731

1шт.

1

47592511

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

1

47592521

LOADER

ASSY

1шт.

Front Loader (HEAVY) with 4 couplers, with Diverter - NSL Tool Attach., Var. 336741

1шт.

1

47592519

LOADER

ASSY

1шт.

Front Loader (HEAVY) with 4 couplers, with Diverter - EU Tool Attach., Var. 336743

1шт.

2

47649271

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336735

1шт.

2

47649265

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336739

1шт.

2

47504995

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336745

1шт.

2

47649274

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336747

1шт.

3

47612284

COUPLING, QUICK, FEM

2шт.

Выбрано товаров: 17
