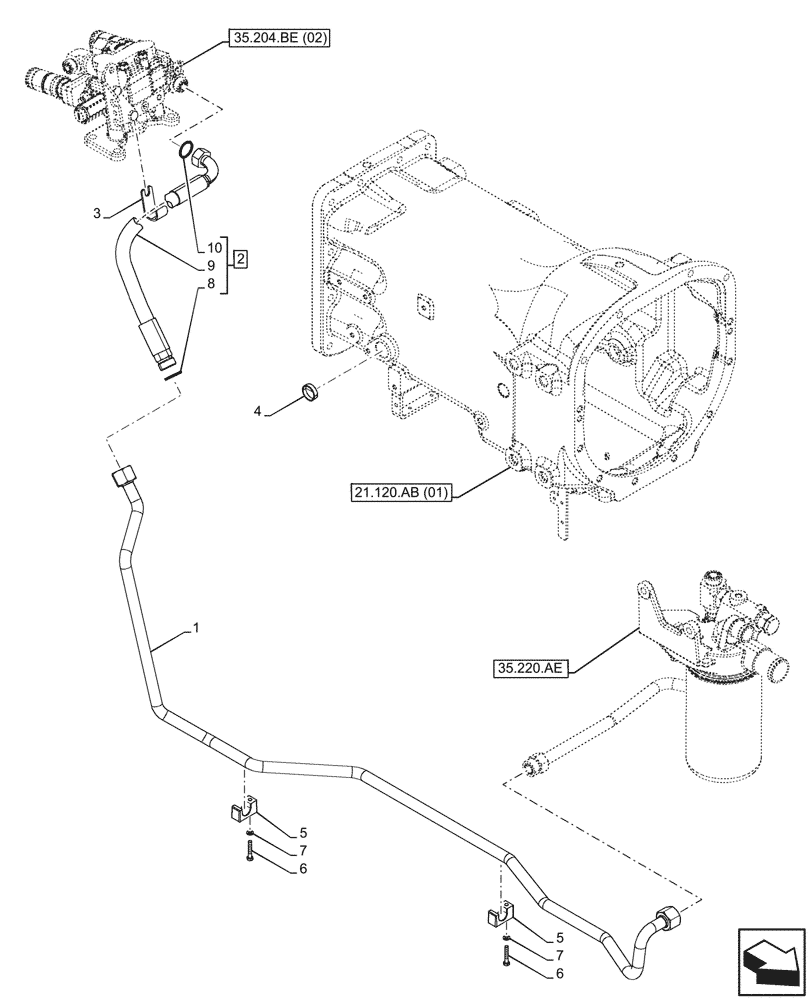

Запчасти Case IH FARMALL 115C (35.204.BJ[09]) - VAR - 390124 - REMOTE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47800728

PIPE

To Oil Filter

1шт.

2

84363868

HOSE,15.9mm ID x 555mm L

From Rear Remote Valve, ASSY, Incl 10 - 12

1шт.

3

84363909

BRACKET

1шт.

4

14329101

PLUG,M30, Tapered

1шт.

5

84428662

BLOCK,20.4mm

1 x 20

2шт.

6

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

1шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
