Запчасти Case IH FARMALL 115C (35.204.BJ[03]) - VAR - 336108 - REMOTE CONTROL VALVE (3 REMOTES, 6 COUPLERS), LINE, HI-LO, W/O CAB (35) - HYDRAULIC SYSTEMS

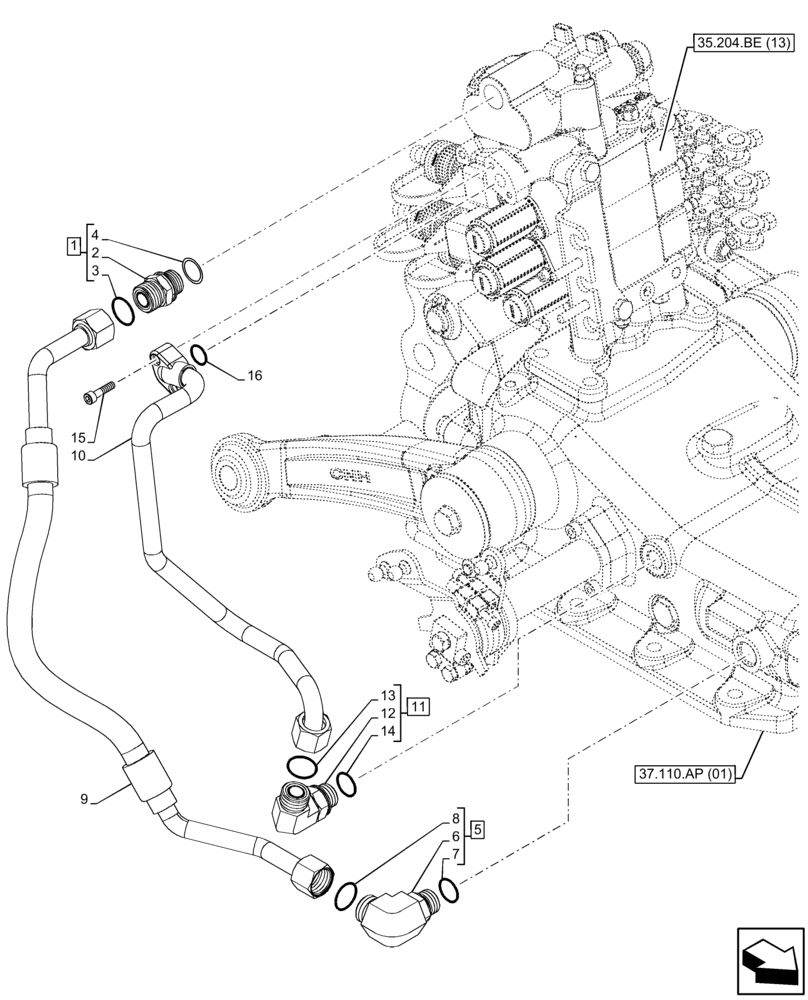

Схема запчастей Case IH FARMALL 115C - (35.204.BJ[03]) - VAR - 336108 - REMOTE CONTROL VALVE (3 REMOTES, 6 COUPLERS), LINE, HI-LO, W/O CAB (35) - HYDRAULIC SYSTEMS
1
4
11
14
12
3
13
16
37.110.ap (01)
5
15
35.204.be (13)
2
6
7
8
9
10

Артикул

Название

Примечание

Количество

1

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Connector boby, Incl in 1

1шт.

3

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

5

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow body, Incl in 5

1шт.

7

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

47608571

TUBE

Return EDC

1шт.

10

47606868

PIPE

From EDC to Ext. Cylinders

1шт.

11

5194728

90 ELBOW

ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow body, Incl in 11

1шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

15

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

16

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

17

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

18

4959735

SPACER,18mm ID x 25mm OD x 30mm L

2шт.

Выбрано товаров: 18
