Запчасти Case IH FARMALL 115C (35.204.BE[25A]) - VAR - 743568 - REMOTE CONTROL VALVE (1 REMOTE, 2 COUPLERS), COMPONENTS, HI-LO - BEGIN YR 15-JUL-2015 (35) - HYDRAULIC SYSTEMS

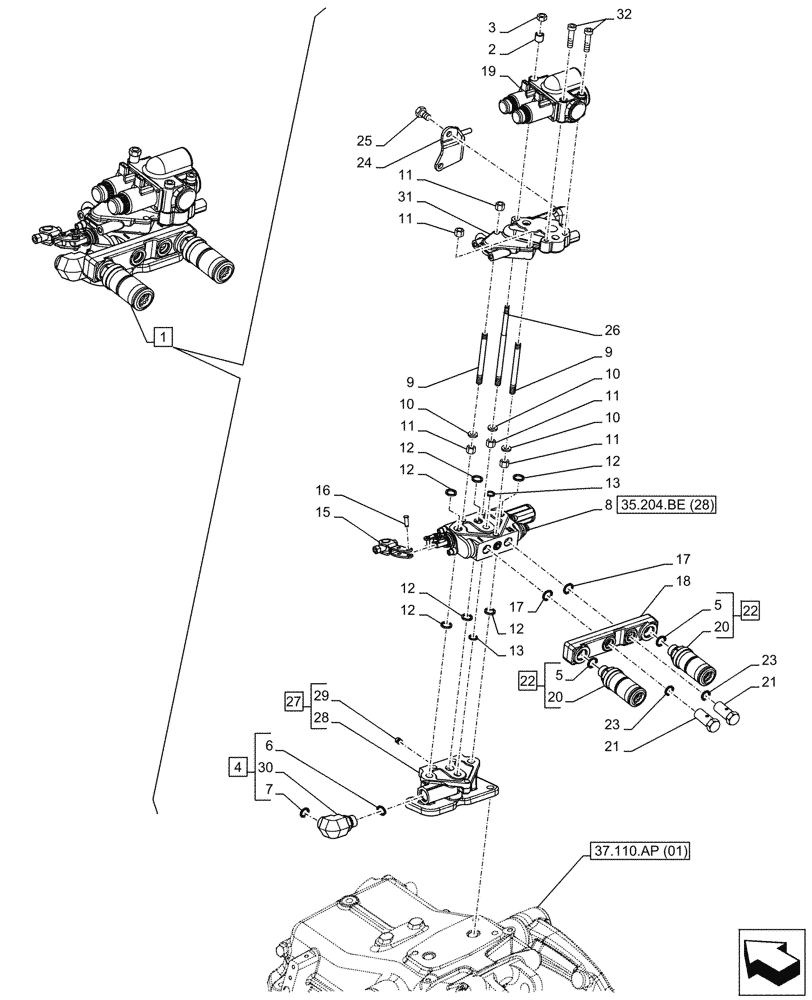

Схема запчастей Case IH FARMALL 115C - (35.204.BE[25A]) - VAR - 743568 - REMOTE CONTROL VALVE (1 REMOTE, 2 COUPLERS), COMPONENTS, HI-LO - BEGIN YR 15-JUL-2015 (35) - HYDRAULIC SYSTEMS
35.204.be (28)
27
28
7
8
13
26
12
29
24
12
18
21
10
5
11
6
12
3
19
11
9
11
25
23
16
22
23
12
10
11
21
5
13
10
22
20
9
32
12
2
4
31
12
30
17
20
1
11
17
15
37.110.ap (01)

Артикул

Название

Примечание

Количество

1

47658179

DISTRIBUTOR

ASSY, Incl 2 - 34

1шт.

See Distributor Components also in Figure 35.204.BE (04)

1шт.

2

47136143

SPACER,8.5mm ID x 14mm OD x 12mm L

1шт.

3

9706690

NUT,M8 x 1.25, Cl 8

1шт.

4

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 30, 32, 33

2шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

6

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

84406708

DISTRIBUTOR

ASSY

1шт.

9

5146465

STUD,3/8" - 24 x 4-3/8"

2шт.

10

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

11

5116857

NUT,3/8" - 24

5шт.

12

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

6шт.

13

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

2шт.

14

11087776

CIRCLIP,Ext., M6, BLO

M6

1шт.

15

47529977

CONTROL LEVER

1шт.

16

5172456

PIN,6mm OD x 20mm L

1шт.

17

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

18.72mm ID x 2.62

2шт.

18

5185533

HYD CONNECTOR

1шт.

19

87551652

CONTROL VALVE

ASSY, Incl 5 (Qty 1), 6 - 8, 31

1шт.

20

NSS

NOT SOLD SEPARAT

Body, Incl in 22

2шт.

21

5168481

BANJO BOLT,M18 x 1.5 x 38mm

2шт.

22

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Incl 5 (Qty 2), 20

2шт.

23

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

24

47645330

BRACKET

1шт.

25

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

26

47645341

STUD

1шт.

27

84254823

PLATE

ASSY, Incl 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Body, Incl in 27

1шт.

29

10269601

PLUG,M16 x 1.5

M16 x 1.5 x 11 STL ZND

1шт.

30

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

2шт.

31

87396841

FLANGE

1шт.

32

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.

Выбрано товаров: 33
