(35.204.BE[09]) - VAR - 743569 - REMOTE CONTROL VALVE, MOUNT, VALVE, HI-LO

Запчасти Case IH FARMALL 115C (35.204.BE[09]) - VAR - 743569 - REMOTE CONTROL VALVE, MOUNT, VALVE, HI-LO (35) - HYDRAULIC SYSTEMS

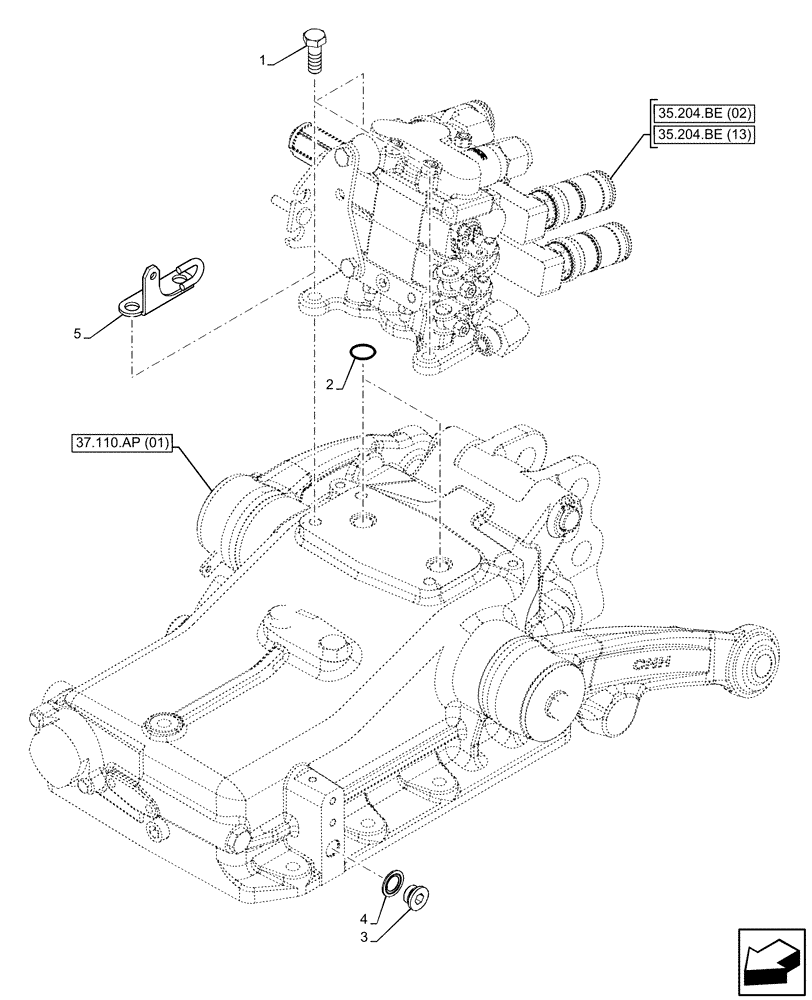

Схема запчастей Case IH FARMALL 115C - (35.204.BE[09]) - VAR - 743569 - REMOTE CONTROL VALVE, MOUNT, VALVE, HI-LO (35) - HYDRAULIC SYSTEMS
3
35.204.be (13)
4
35.204.be (02)
5
37.110.ap (01)
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15542534

BOLT,Hex, M12 x 1.25 x 190mm, Cl 10.9

3шт.

2

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

2шт.

3

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

4

10273111

PLUG,M18 x 1.5 x 13

1шт.

5

47641732

BRACKET

1шт.
