(35.204.BE[03]) - VAR - 743569 - REMOTE CONTROL VALVE (2 REMOTES, 4 COUPLERS), COMPONENTS, HI-LO - END YR 13-OCT-2015

Запчасти Case IH FARMALL 115C (35.204.BE[03]) - VAR - 743569 - REMOTE CONTROL VALVE (2 REMOTES, 4 COUPLERS), COMPONENTS, HI-LO - END YR 13-OCT-2015 (35) - HYDRAULIC SYSTEMS

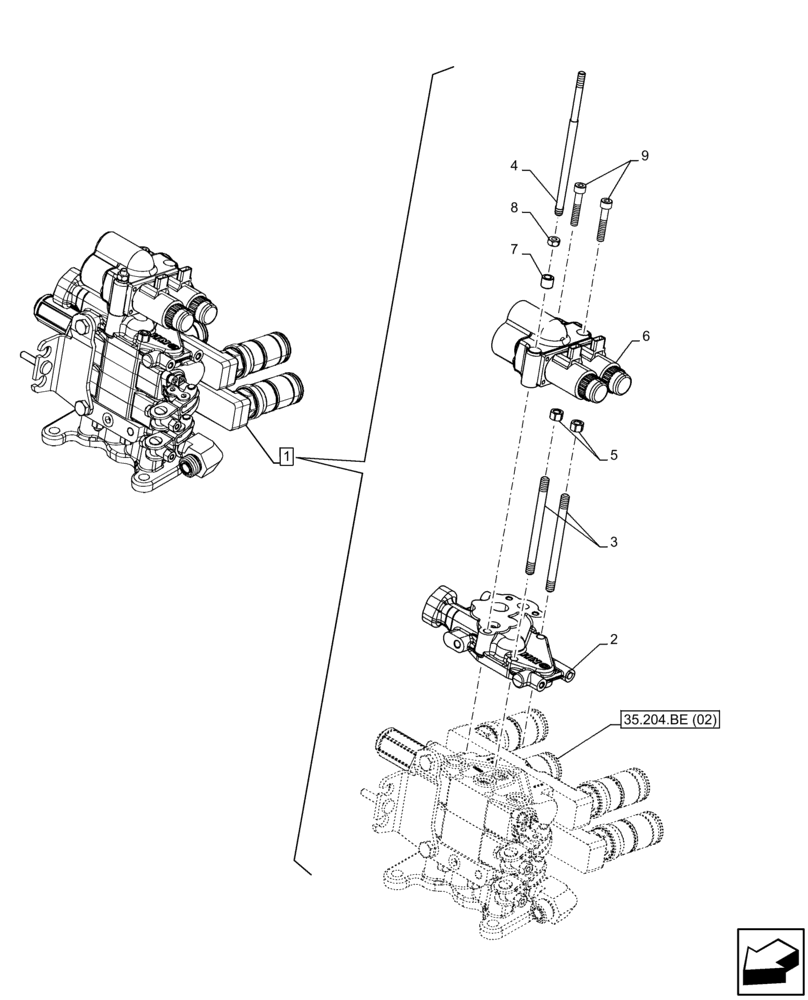

Схема запчастей Case IH FARMALL 115C - (35.204.BE[03]) - VAR - 743569 - REMOTE CONTROL VALVE (2 REMOTES, 4 COUPLERS), COMPONENTS, HI-LO - END YR 13-OCT-2015 (35) - HYDRAULIC SYSTEMS
9
8
4
7
35.204.be (02)
3
5
6
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84343688

DISTRIBUTOR

ASSY, Distributor, Incl 2 - 9

1шт.

2

87396841

FLANGE

1шт.

3

5146464

TIE-ROD

2шт.

4

84349388

STUD

1шт.

5

5116857

NUT,3/8" - 24

2шт.

6

87551652

CONTROL VALVE

EDC

1шт.

7

47136143

SPACER,8.5mm ID x 14mm OD x 12mm L

1шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

9

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.
