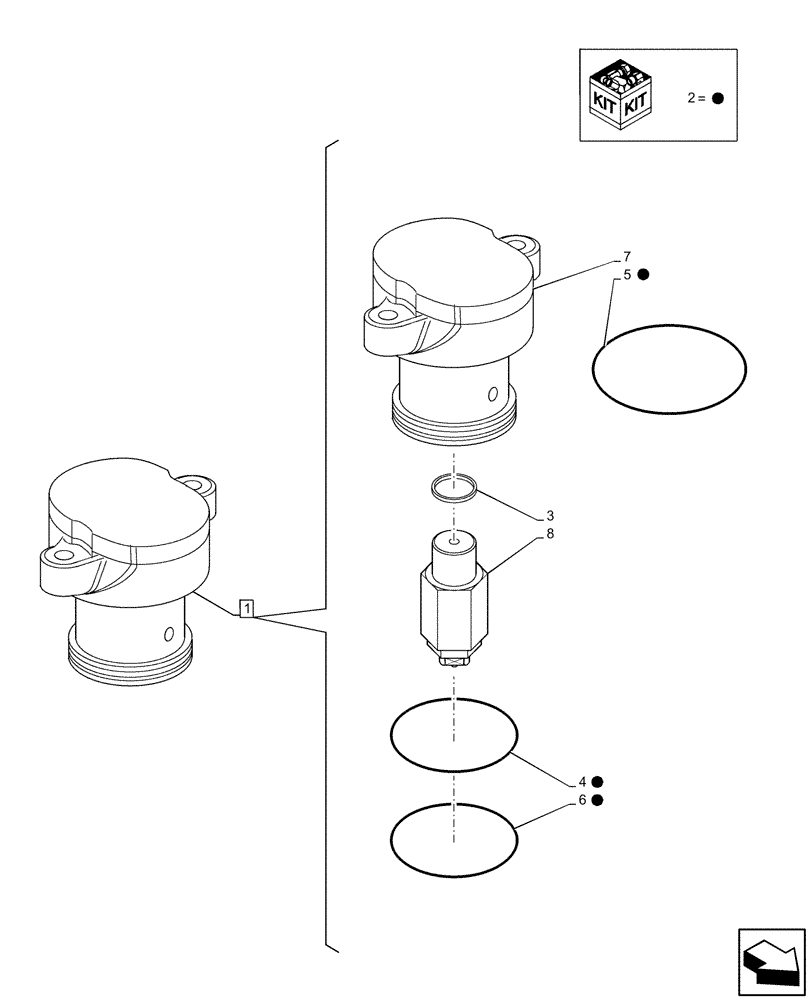

Запчасти Case IH FARMALL 115C (35.114.AA[03]) - VAR - 743597 - HYDRAULIC LIFT, CONTROL VALVE, COMPONENTS, HI-LO, CAB (35) - HYDRAULIC SYSTEMS

1

84561214

VALVE, PRESSURE CONT

ASSY, Incl 1, 3 - 7

1шт.

2

84562043

GASKET KIT

KIT, Incl 4 - 6

1шт.

Include also Gaskets in Figure 37.110.AI (05), 37.110.AQ (03)

1шт.

3

10280060

SEAL,M14.2 x 20 x 1.5

1шт.

4

84561211

O-RING,3.53mm Thk x 47.63mm ID

1шт.

5

84263721

O-RING,58.74mm ID x 3.53mm Thk

1шт.

6

47361429

RING

1шт.

7

84561208

VALVE BODY

1шт.

8

84561209

VALVE, PRESSURE CONT

1шт.
