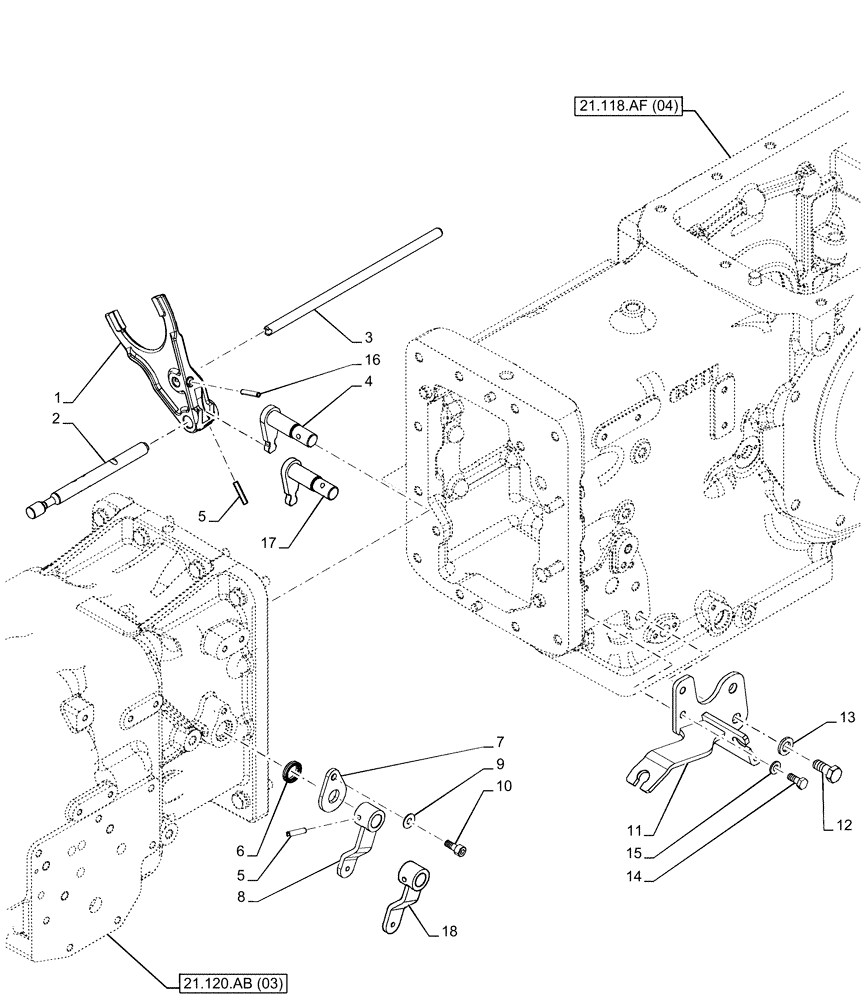

Запчасти Case IH FARMALL 115C (21.168.AK[01]) - VAR - 334117 - TRANSMISSION, CENTRAL REDUCTION GEAR, CONTROLS (24X24) (HI-LO) (21) - TRANSMISSION

1

84347407

FORK

1шт.

2

84414445

ROD

1шт.

3

47479427

ROD

1шт.

4

47379377

LEVER

, Years: -28-NOV-13

1шт.

5

13907670

ROLL PIN,M5 x 30, Coiled

2шт.

6

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

1шт.

7

84233704

PLATE

1шт.

8

47610477

LEVER

, Years: -28-NOV-13

1шт.

9

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

10

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

1шт.

11

84387791

BRACKET

1шт.

12

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

13

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

2шт.

16

13909870

PIN,6mm OD x 20mm L

1шт.

17

47638661

LEVER

, Start Year: 29-NOV-13

1шт.

18

47638662

LEVER

, Start Year: 29-NOV-13

1шт.
