Запчасти Case IH FARMALL 115C (21.168.AC[05]) - VAR - 743552, 743553 - CLUTCH, HI-LO (21) - TRANSMISSION

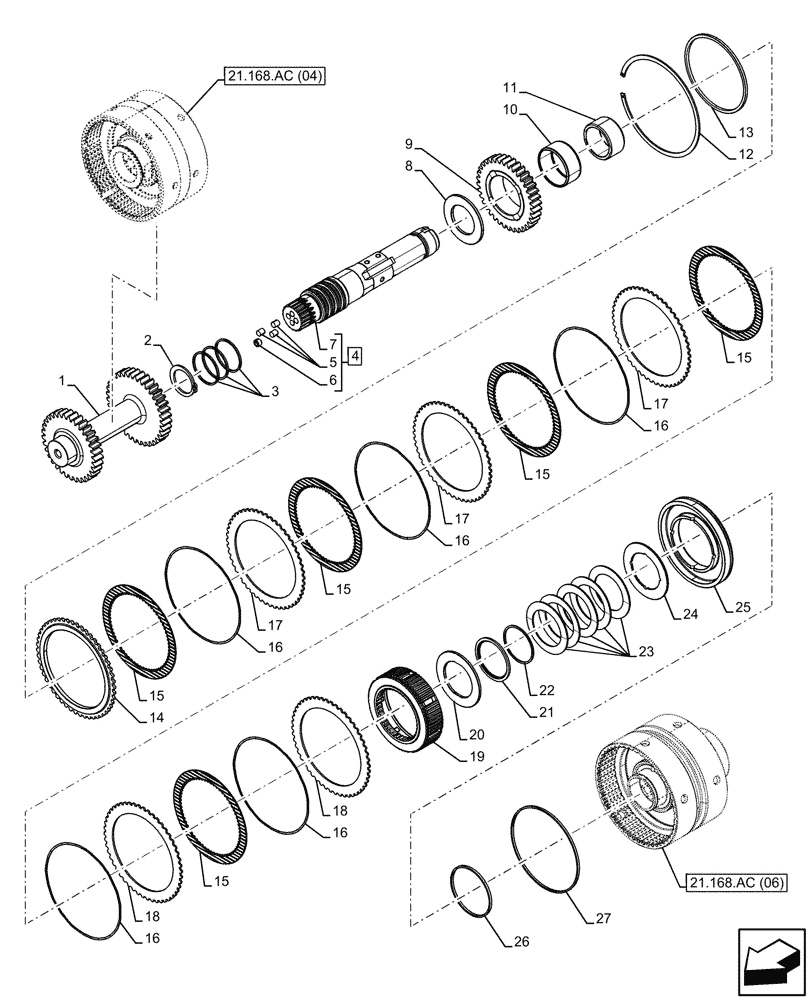

Схема запчастей Case IH FARMALL 115C - (21.168.AC[05]) - VAR - 743552, 743553 - CLUTCH, HI-LO (21) - TRANSMISSION
21.168.ac (04)
15
16
13
21
20
26
15
5
16
24
16
12
4
18
2
17
3
8
6
17
15
16
9
1
19
22
23
7
27
15
10
14
17
11
16
25
15
18
21.168.ac (06)

Артикул

Название

Примечание

Количество

1

84336983

GEAR,Z36/Z33, 184.4mm

Drive, Reverse

1шт.

2

440442

SNAP RING,M40 x 2.5mm Thk, External

1шт.

3

5175983

SEALING RING,46mm ID

4шт.

4

47666655

SHAFT

ASSY, Incl 5 - 7

1шт.

5

14536490

PLUG,8.00mm Dia x 15.70mm L

3шт.

6

NSS

NOT SOLD SEPARAT

Pin, Incl in 4

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Incl in 4

1шт.

8

84330737

SPACER,75mm ID x 45mm OD x 4mm Thk

1шт.

9

84330740

GEAR,Z36/Z38

Drive

1шт.

10

5194535

NEEDLE BEARING CAGE,55mm ID x 60mm OD x 27mm L

1шт.

11

84330739

RING,45mm ID x 55mm OD x 27.5mm L

1шт.

12

5162251

CIRCLIP,142.5mm ID

1шт.

13

5190245

SEAL,119.2mm OD

1шт.

14

84339685

DISC,Z50, 120mm ID

1шт.

15

5199726

NOTCHED DISK,114.78mm ID x 143.25mm OD x 1.65mm Thk

5шт.

16

81864341

SPRING,148.35mm ID

5шт.

17

47136596

NOTCHED DISK,119.6mm ID x 152.6mm OD x 2.2mm Thk

3шт.

18

84409574

CLUTCH DISC,119.6mm ID x 152.6mm OD x 2mm Thk

2шт.

19

84339677

HUB

1шт.

20

47379396

SPACER,55.4mm ID x 85mm OD x 3.5mm L

1шт.

21

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

22

5191305

CIRCLIP,54mm ID

1шт.

23

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

5шт.

24

84337008

SPACER,55.4mm ID x 86.5mm OD x 2.5mm Thk

1шт.

25

47379391

PISTON,78mm ID x 132mm OD x 15.8mm L

1шт.

26

47136601

GASKET,70.55 - 70.70mm ID x 78mm OD x 3.20mm Thk

1шт.

27

5137563

GASKET,124.55mm ID x 132mm OD x 3.2mm Thk

1шт.

Выбрано товаров: 27
