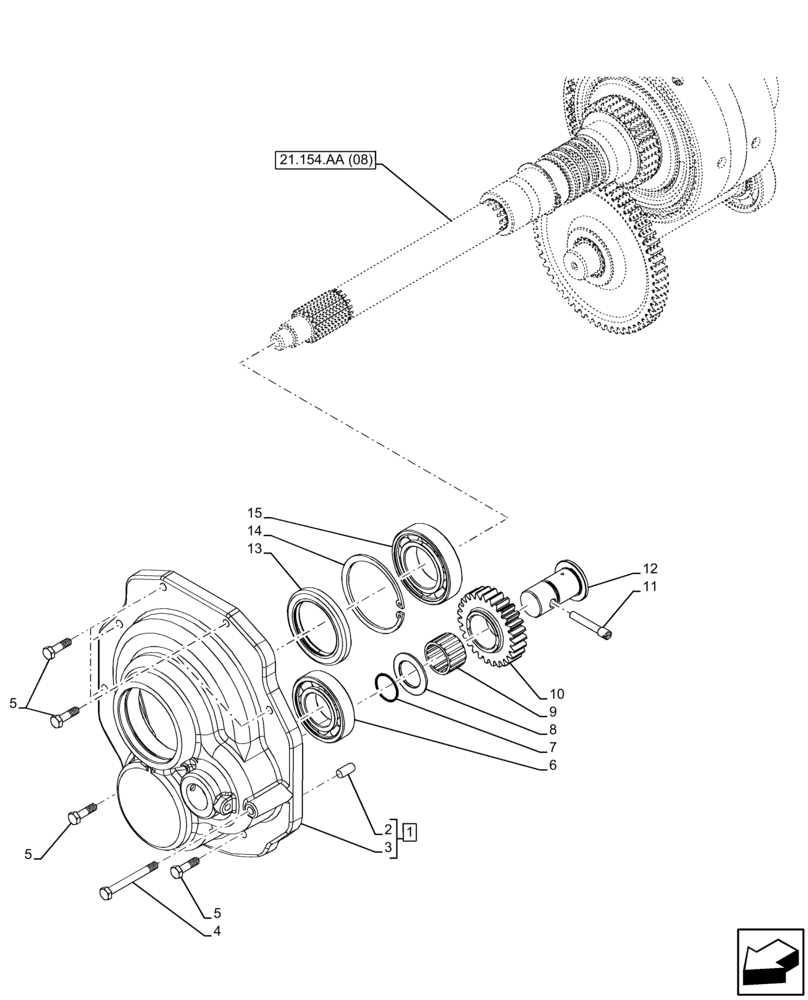

Запчасти Case IH FARMALL 115C (21.168.AC[01]) - VAR - 334177, 390275 - CLUTCH (24X24) (HI-LO) (21) - TRANSMISSION

1

84351960

COVER

ASSY, Incl 2, 3

1шт.

2

4988170

PIN,10mm OD x 20mm L

2шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

4

16044811

SCREW,M8 x 80mm L

1шт.

5

16043637

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

7шт.

6

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

7

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

8

84336987

WASHER,32mm ID x 50mm OD x 3mm Thk

1шт.

9

84340076

NEEDLE BEARING,32mm ID x 40mm OD x 25mm W

1шт.

10

84336977

GEAR,27T

Medium, Reverse

1шт.

11

84337006

PIN,7.9mm OD x 57mm L

1шт.

12

47363904

PIN,32mm OD x 62mm L

1шт.

13

5131495

RUBBER SEAL,65mm ID x 90mm OD x 10mm Thk

1шт.

14

11062476

SNAP RING,M90, Int

1шт.

15

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.

1

84351960

COVER

ASSY, Incl 2, 3

1шт.

2

4988170

PIN,10mm OD x 20mm L

2шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

4

16044811

SCREW,M8 x 80mm L

M8 x 80 5.8 DAC

1шт.

5

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

7шт.

6

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

7

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

8

84336987

WASHER,32mm ID x 50mm OD x 3mm Thk

1шт.

9

84340076

NEEDLE BEARING,32mm ID x 40mm OD x 25mm W

1шт.

10

84336977

GEAR,27T

1шт.

11

84337006

PIN,7.9mm OD x 57mm L

1шт.

12

47363904

PIN,32mm OD x 62mm L

1шт.

13

5131495

RUBBER SEAL,65mm ID x 90mm OD x 10mm Thk

1шт.

14

11062476

SNAP RING,M90, Int

1шт.

15

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.
