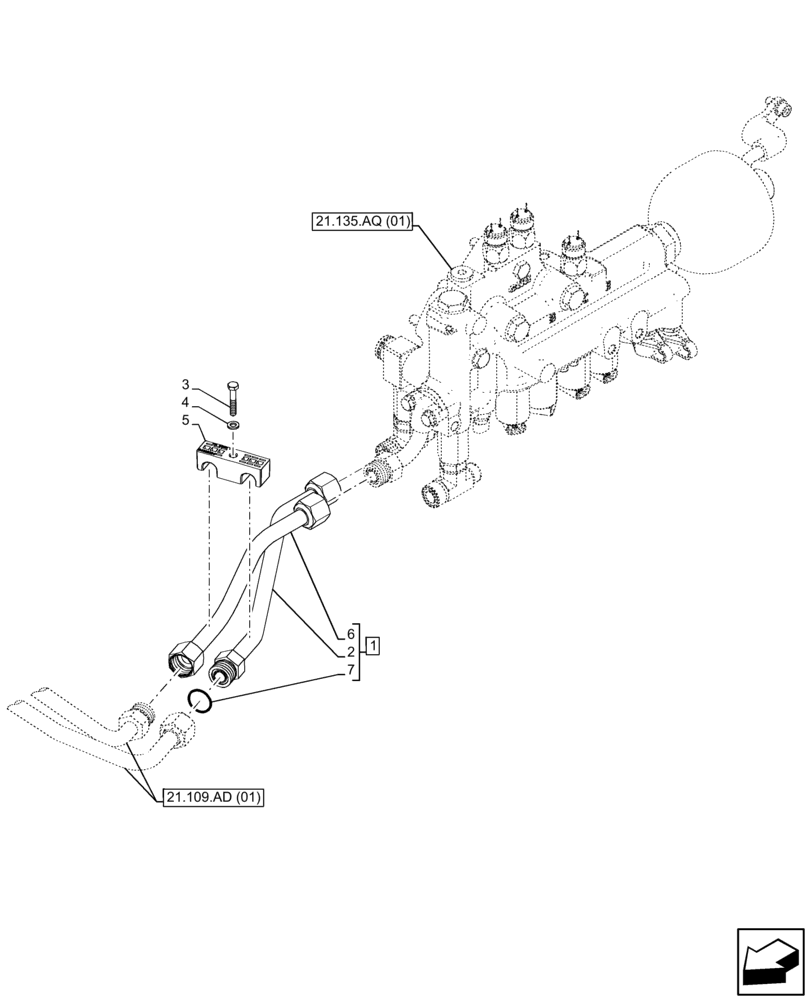

Запчасти Case IH FARMALL 115C (21.109.AD[02]) - VAR - 743524 - TRANSMISSION OIL, COOLER, LINE (21) - TRANSMISSION

1

84492513

TUBE

To Cooler, ASSY, Incl 6, 7

1шт.

2

84492511

PIPE

From Cooler

1шт.

3

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

1шт.

4

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

5

84309294

FIXING PLATE

1шт.

6

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
