(90.118.CE[01]) - VAR - 391460 - OPERATORS LADDER, W/ CAB (FAS)

Запчасти Case IH FARMALL 115C (90.118.CE[01]) - VAR - 391460 - OPERATORS LADDER, W/ CAB (FAS) (90) - PLATFORM, CAB, BODYWORK AND DECALS

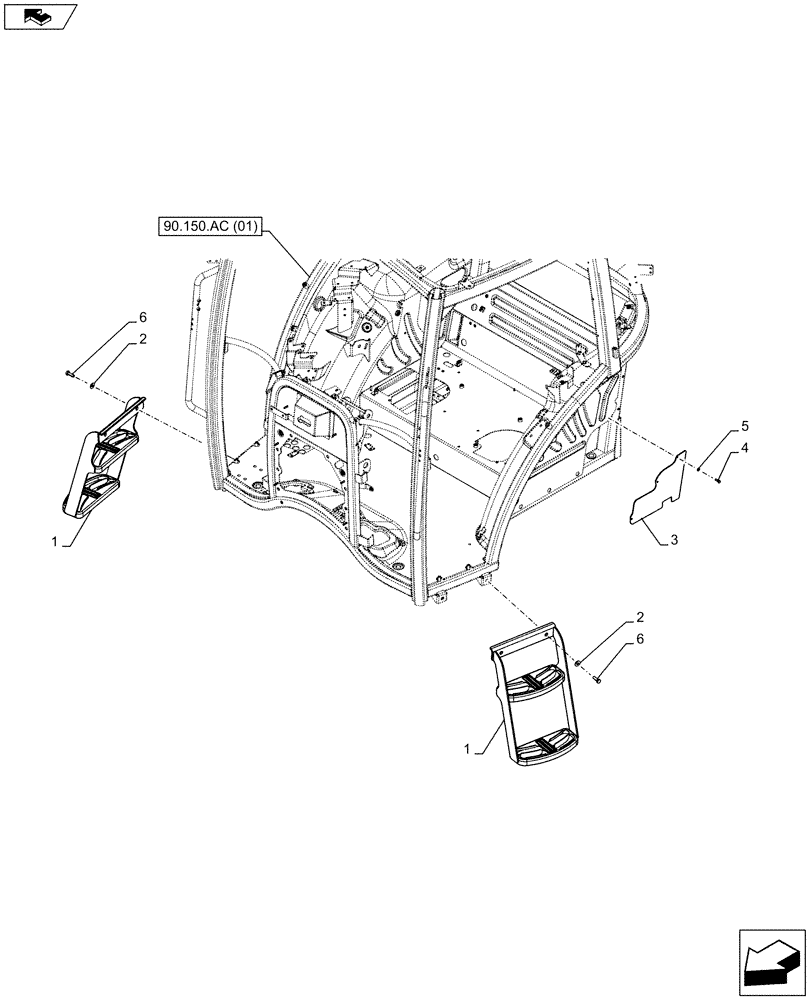

Схема запчастей Case IH FARMALL 115C - (90.118.CE[01]) - VAR - 391460 - OPERATORS LADDER, W/ CAB (FAS) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
home
1
2
5
90.150.ac (01)
3
1
6
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84580939

LADDER

2шт.

2

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.

3

84477830

STEEL PLATE

2шт.

4

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

5

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

6шт.

6

87026053

BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
