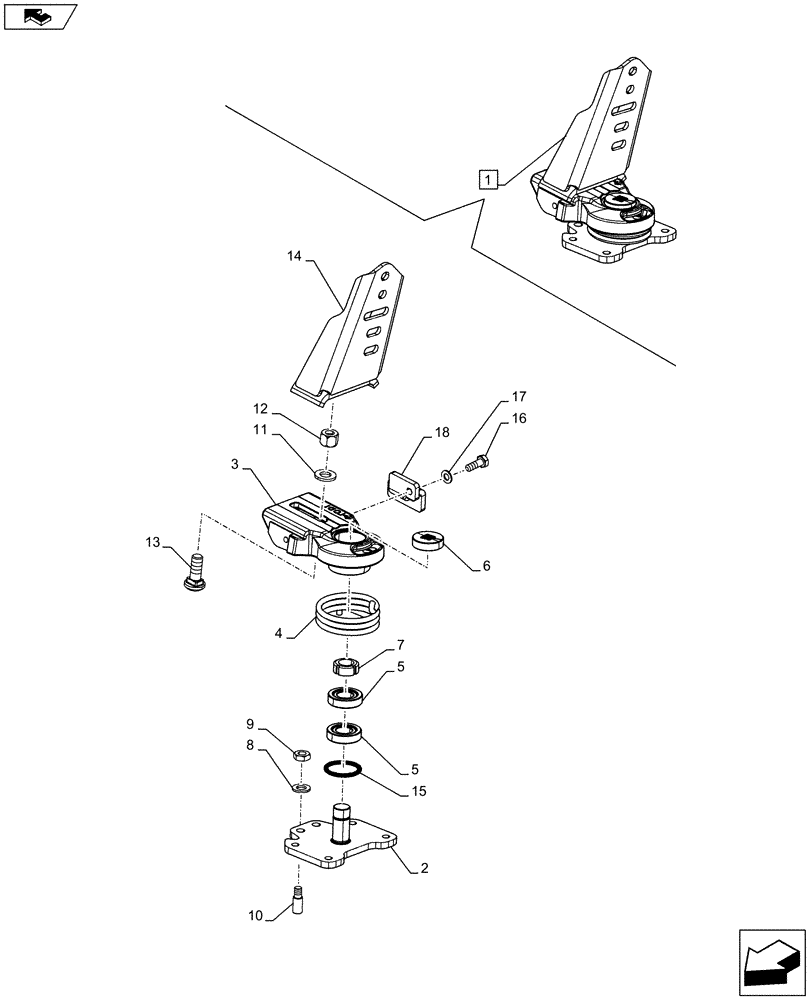

Запчасти Case IH FARMALL 115C (90.116.BA[02]) - VAR - 744674 - DYNAMIC FRONT FENDER, SUPPORT (410MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84593551

SUPPORT

Assy, Incl 2 - 18, RH

1шт.

1

84593553

SUPPORT

Assy, Incl 2 - 18, LH

1шт.

2

84599575

SUPPORT

1шт.

3

84599576

HUB

1шт.

4

84134750

SPRING,8mm OD

RH

1шт.

4

84134749

SPRING,8mm OD

LH

1шт.

5

47132628

ROLLER BEARING,25mm ID x 47mm OD x 15mm W

2шт.

6

84599582

PLUG

1шт.

7

84599584

FERRULE,M25 x 1.25

1шт.

8

11191079

BELLEVILLE WASHER,Belleville, 15mm ID x 27mm OD x 2.6mm Thk

1шт.

9

10791311

THIN NUT,M14 x 1.5, Cl 04

1шт.

10

47132631

DOWEL,M14 x 1.5mm

1шт.

11

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

12

12575911

NUT,M16 x 1.5, Cl 8

1шт.

13

47137907

SCREW,M16 x 1.5

1шт.

14

87528133

SUPPORT

RH

1шт.

14

87528148

SUPPORT

LH

1шт.

15

47132630

O-RING,2.62mm Thk x 50mm ID

1шт.

16

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

17

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

1шт.

18

87751287

SUPPORT

RH

1шт.

18

87751274

SUPPORT

LH

1шт.
