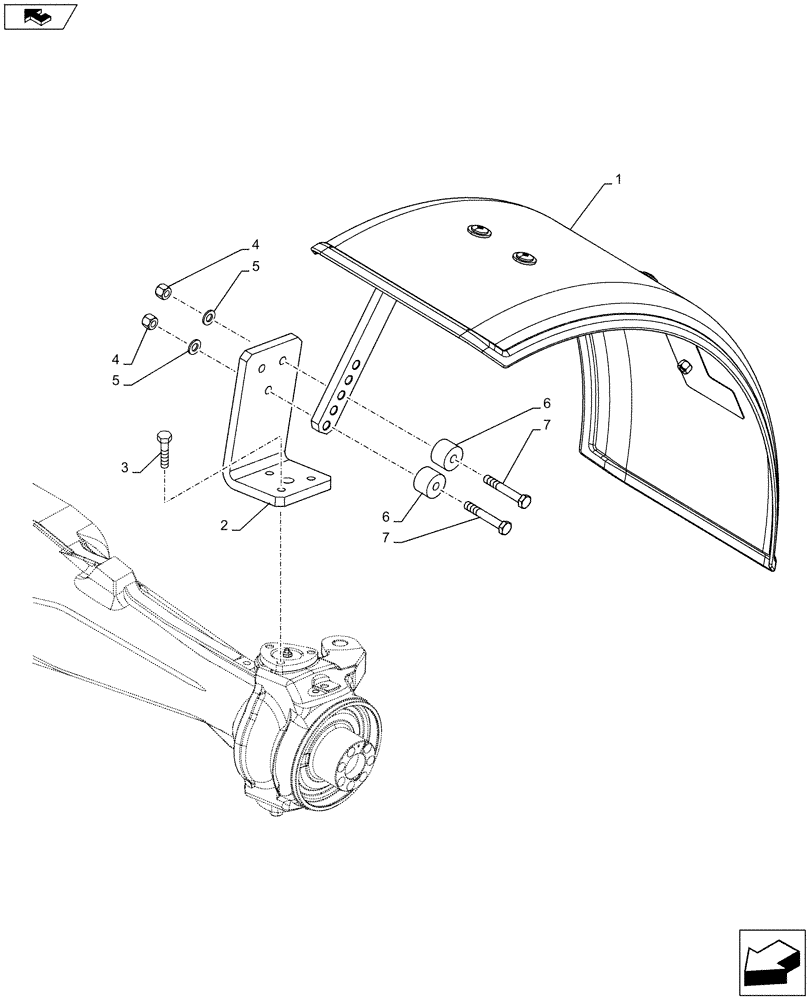

Запчасти Case IH FARMALL 115C (90.116.AC[13]) - VAR - 744673 - FRONT FENDER (400MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47393663

FRONT FENDER,400mm

RH, 400 mm

1шт.

1

47393678

FRONT FENDER,400mm

LH, 400 mm

1шт.

2

5185292

SUPPORT

2шт.

3

14233934

BOLT,Hex, M10 x 1.25 x 45mm, Cl 10.9

6шт.

4

16105014

LOCK NUT,M12 x 1.25

4шт.

5

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

6

5166193

SPACER,13mm ID x 40mm OD x 28mm L

4шт.

7

15541424

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

4шт.
