(90.116.AC[04]) - VAR - 744599 - REAR FENDER EXTENSION, W/CAB

Запчасти Case IH FARMALL 115C (90.116.AC[04]) - VAR - 744599 - REAR FENDER EXTENSION, W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

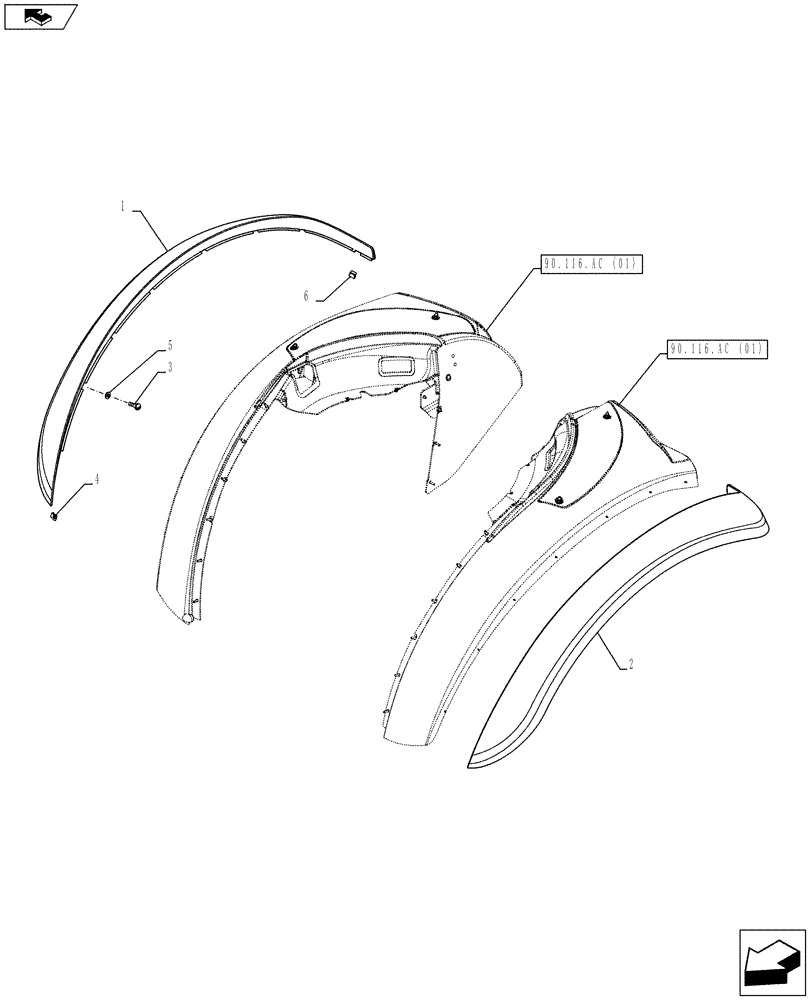

Схема запчастей Case IH FARMALL 115C - (90.116.AC[04]) - VAR - 744599 - REAR FENDER EXTENSION, W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.ac (01)
4
2
home
5
1
3
90.116.ac (01)
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84290224

FENDER EXTENSION

RH

1шт.

2

84290223

FENDER EXTENSION

LH

1шт.

3

760-14313

SELF-TAP SCREW,Phillips Drive, Pan HD, M4.2 x 1.4 x 13mm

16шт.

4

5173740

RETAINER COLLAR,7mm ID x 12mm OD x 0.4mm Thk

2шт.

5

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

5.5x11x1mm CST DAC

16шт.

6

82010838

SPRING CLIP,0.5mm Thk

16шт.
