(90.110.AV[02]) - VAR - 390124, 336125, 338125 - TRIM PANEL, W/O CAB

Запчасти Case IH FARMALL 115C (90.110.AV[02]) - VAR - 390124, 336125, 338125 - TRIM PANEL, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

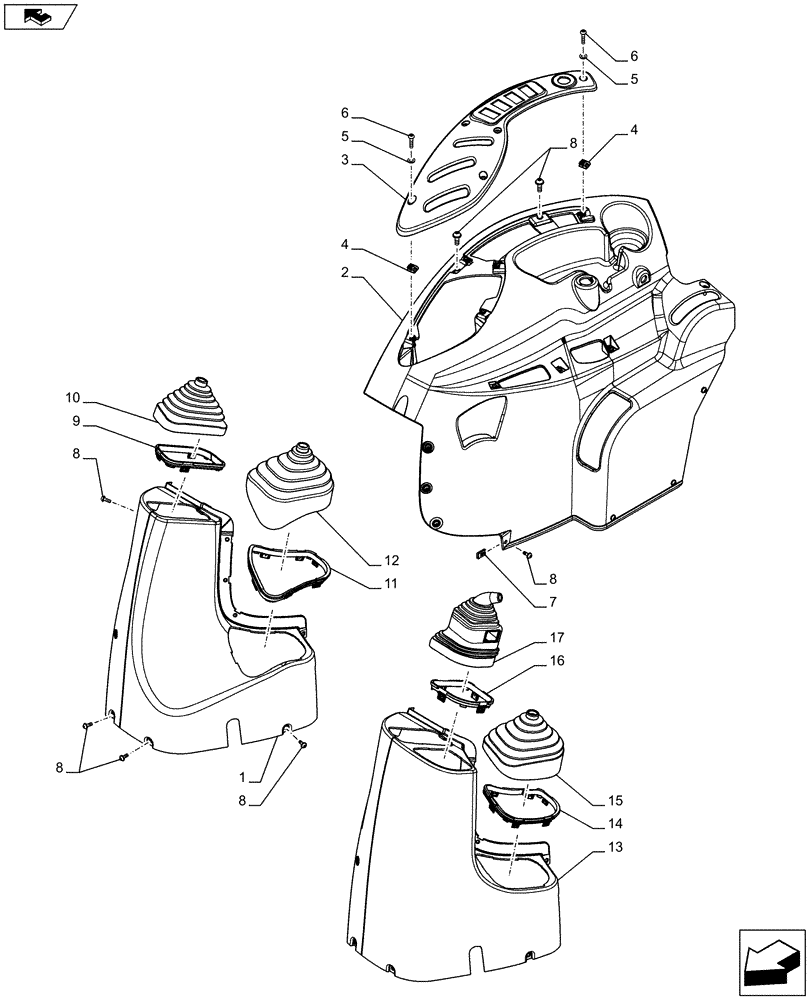

Схема запчастей Case IH FARMALL 115C - (90.110.AV[02]) - VAR - 390124, 336125, 338125 - TRIM PANEL, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
5
8
11
8
15
4
3
6
12
4
7
10
9
14
13
1
8
17
16
5
home
8
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84347041

TRIM

1шт.

Less Mid-Mount Remotes Valves, Var. 390124, 331123, 333216, 338215 (390124)

1шт.

2

84384535

TRIM PANEL

1шт.

3

84384541

TRIM PANEL

1шт.

4

14372671

SPRING NUT,M4.2, U, 12.4mm long

5шт.

5

86639314

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

6

84183818

SCREW,Torx Pan HD, M4 x 23.1mm, Cl 4.8

5шт.

7

14371774

SPRING NUT,M6, U, 12mm long

10шт.

8

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

26шт.

9

84370123

COVER

1шт.

10

84370119

BOOT

1шт.

11

84374602

COVER

1шт.

Less Mid-Mount Remotes Valves, Var. 390124, 331123, 333216, 338215 (390124)

1шт.

12

84374601

BOOT

1шт.

Less Mid-Mount Remotes Valves, Var. 390124, 331123, 333216, 338215 (390124)

1шт.

13

84315023

TRIM

1шт.

2 Mid-Mount Remote Valves with Joystick, Var. 330342, 331342, 332126, 336125 (336125) or Var.330344, 331344, 338125, 338126 (338125)

1шт.

14

84370122

COVER

1шт.

2 Mid-Mount Remote Valves with Joystick, Var. 330342, 331342, 332126, 336125 (336125) or Var.330344, 331344, 338125, 338126 (338125)

1шт.

15

84370118

BOOT

1шт.

2 Mid-Mount Remote Valves with Joystick, Var. 330342, 331342, 332126, 336125 (336125) or Var.330344, 331344, 338125, 338126 (338125)

1шт.

16

84370125

INSERT

1шт.

2 Mid-Mount Remote Valves with Joystick, Var. 330342, 331342, 332126, 336125 (336125) or Var.330344, 331344, 338125, 338126 (338125)

1шт.

17

84370120

BOOT

1шт.

2 Mid-Mount Remote Valves with Joystick, Var. 330342, 331342, 332126, 336125 (336125) or Var.330344, 331344, 338125, 338126 (338125)

1шт.
