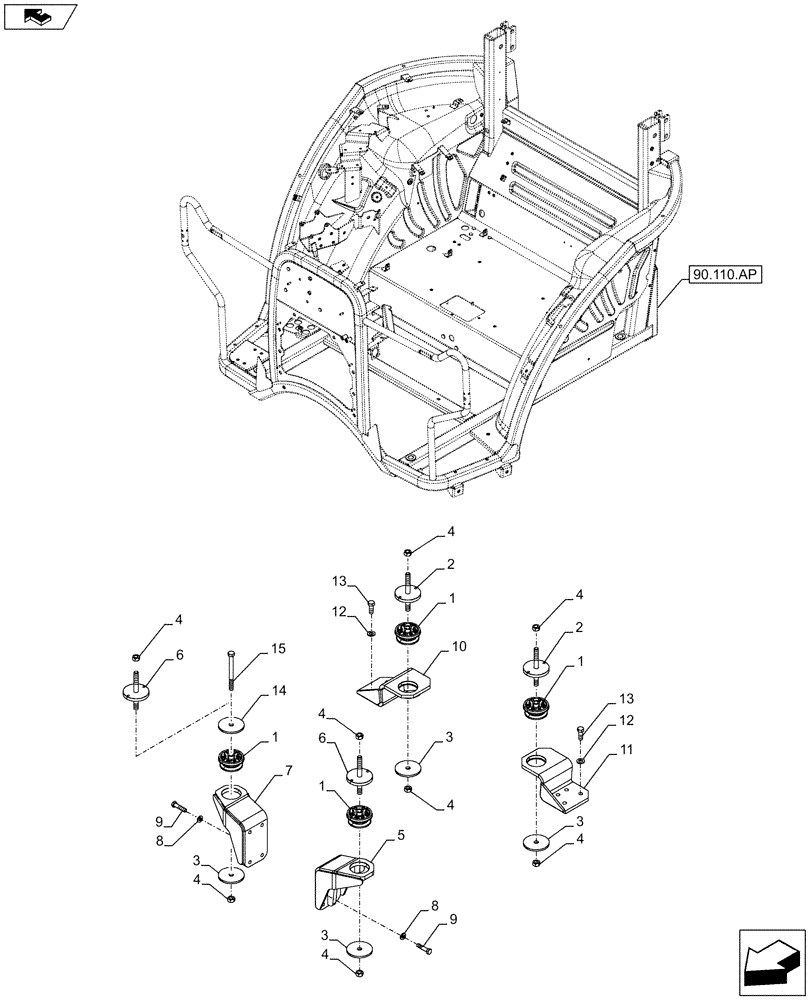

Запчасти Case IH FARMALL 115C (90.110.AQ[01]) - VAR - 392315, 394315, 334187, 334190, 334191 - PLATFORM, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

83983548

ISOLATOR,120mm OD x 64mm L

4шт.

2

84355204

SPACER

2шт.

3

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

4шт.

4

86015195

NUT,M20 x 1.5, Cl 10

6шт.

5

47387951

SUPPORT

1шт.

6

84393678

SPACER

2шт.

In Alternative to p.n.15990931+84421169

1шт.

7

47387956

SUPPORT

1шт.

8

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.

9

15835234

BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9

8шт.

10

47387950

SUPPORT

1шт.

11

47387947

SUPPORT

1шт.

12

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

13

15984324

SCREW,Hex, M18 x 1.5 x 50mm, Cl 8.8, Full Thd

8шт.

14

84421169

SPACER,21mm ID x 120mm OD x 14.7mm L

2шт.

In Alternative to p.n.84393678+86015195

1шт.

15

15990931

BOLT,Hex, M20 x 1.5 x 190, 10.9

2шт.

In Alternative to p.n.84393678+86015195

1шт.
