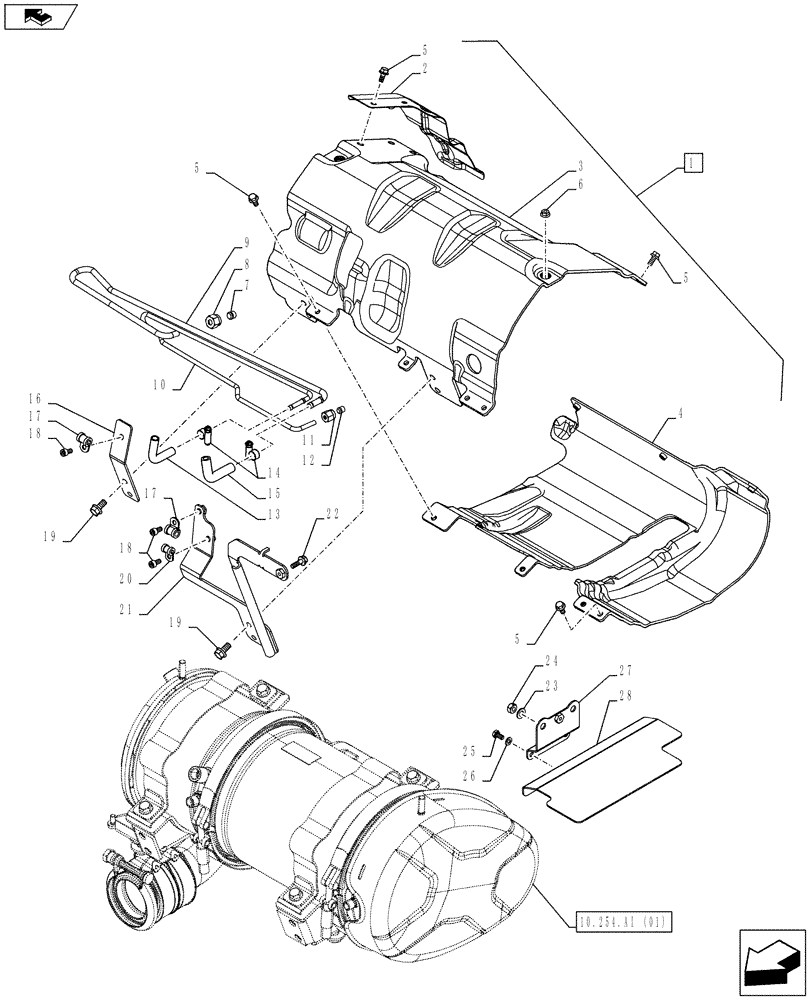

Запчасти Case IH FARMALL 115C (10.254.AI[03]) - VAR - 390199, 391151, 743544, 743545 - EXHAUST SYSTEM, MUFFLER, HEAT SHIELD (10) - ENGINE

1

47367109

HEAT SHIELD

ASSY, Incl 2-4

1шт.

2

47367116

HEAT SHIELD

Brake Fluid Reservoir

1шт.

3

84485444

HEAT SHIELD

Upper

1шт.

4

84485446

HEAT SHIELD

Lower

1шт.

5

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

10шт.

6

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

7

11264111

RING,8mm, Style A

8 mm

1шт.

8

11260311

TUBE NUT,M14 x 1.5mm, 8 ZND

M14 x 1.5

1шт.

9

84321106

TUBE,8mm OD, Rigid

8mm OD, Rigid, RH, to DPF Delta Pressure Sensor

1шт.

10

84321108

TUBE,6mm OD, Rigid

6mm OD, Rigid, LH, to DPF Delta Pressure Sensor

1шт.

11

11260211

TUBE NUT,M12 x 1.5mm, 8 ZND

M12 x 1.5

1шт.

12

11266411

FERRULE,6mm, Style A

6 mm

1шт.

13

84321109

PRESSURE PIPE,6mm ID x 84.9mm L, Flexible

6mm ID x 84.9mm L, Flexible, to DPF Delta Pressure Sensor

1шт.

14

13000190

HOSE CLAMP,M10-16

2шт.

15

84321111

PRESSURE PIPE,8mm ID x 79.4mm L, Flexible

8mm ID x 79.4mm L, Flexible, to DPF Delta Pressure Sensor

1шт.

16

84583916

BRACKET

Pressure Pipe

1шт.

17

10418301

RETAINER COLLAR,8mm, Coat, 7mm Bolt Hole, P Type

8 mm

2шт.

18

14305131

HEX SOC SCREW,M6 x 12mm, Cl 10.9, Full Thd

3шт.

19

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

20

10418101

RETAINER COLLAR,6mm, Coat, P Type

6 mm

1шт.

21

84583906

BRACKET

Pressure Pipe & DPF Delta Pressure Sensor

1шт.

22

16286124

BOLT,M6 x 20mm, 8.8 DAC

M6 x 20

1шт.

23

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

24

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

25

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

26

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

27

84530346

HEAT SHIELD

Starter Motor, Upper

1шт.

28

47411323

HEAT SHIELD

Starter Motor, Lower

1шт.
