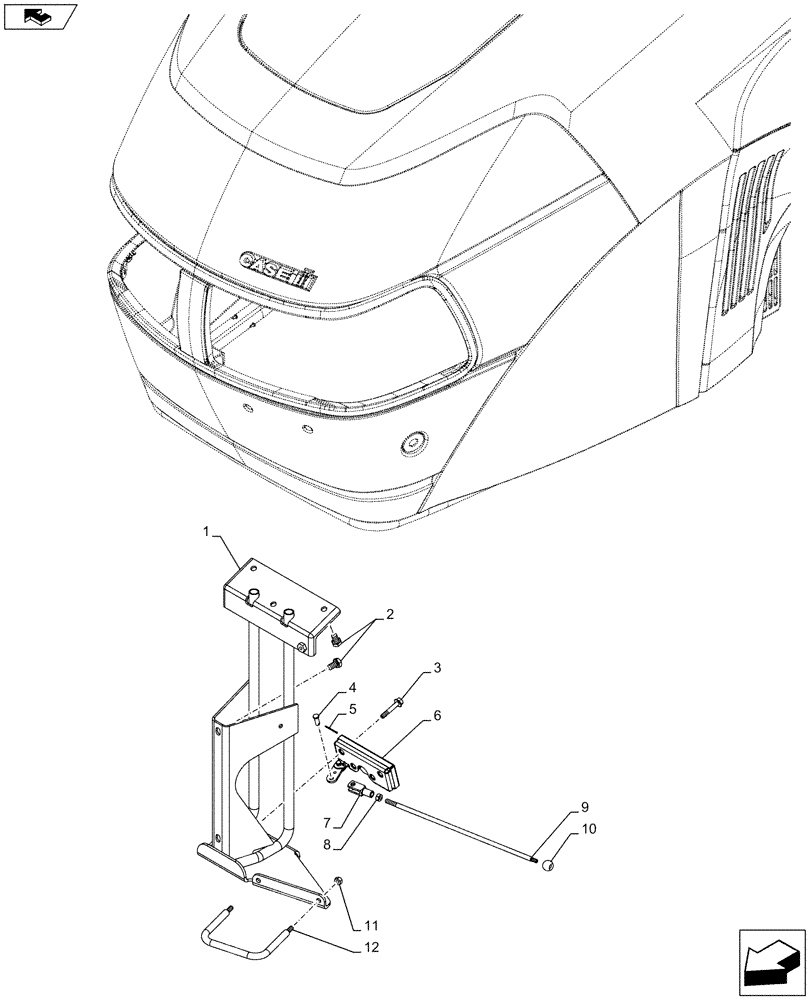

Запчасти Case IH FARMALL 115C (90.102.AU[01]) - HOOD, LOCKING DEVICE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84278506

SUPPORT

1шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

5шт.

3

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

4

10004911

PIN,6mm OD x 17mm L

1шт.

5

10795101

COTTER PIN,M1.6 x 18

1шт.

6

84349450

LOCK

1шт.

7

10001071

YOKE,M6

1шт.

8

15896211

NUT,M6, Cl 8

1шт.

9

84329993

THREADED TIE-ROD

1шт.

10

84287785

BALL,5mm ID x 16mm OD

1шт.

11

10720114

NUT,Hex, M6 x 1

2шт.

12

84384258

U-BRACKET

1шт.
