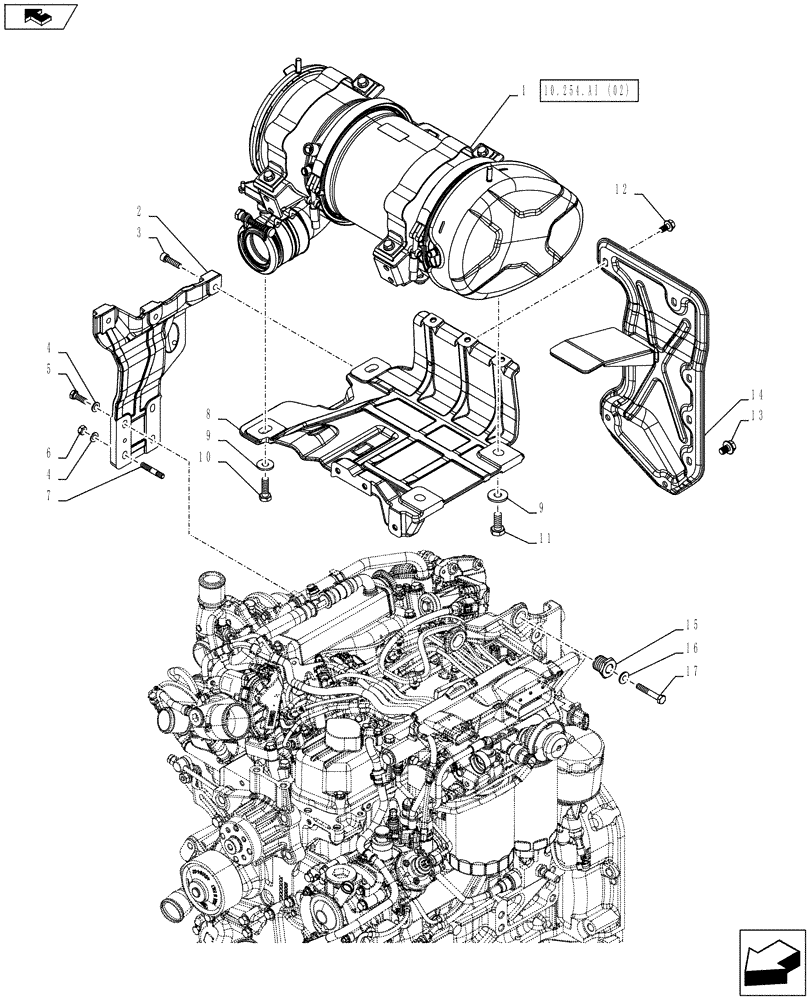

Запчасти Case IH FARMALL 115C (10.254.AI[01]) - VAR - 390199, 391151, 743544, 743545 - EXHAUST SYSTEM, MUFFLER (10) - ENGINE

1

84475388

MUFFLER

ASSY

1шт.

2

84600907

BRACKET

1шт.

3

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

5

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

7

13517320

STUD,M8 x 1.25 x 35.00mm, Cl 8.8, PLN

2шт.

8

84600908

SUPPORT

1шт.

9

11198479

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD

10.5 x 27 x 2.8 x 0.55

4шт.

10

11106634

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

11

11106434

BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd

2шт.

12

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

5шт.

13

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

M10 x 15

2шт.

14

84529547

SUPPORT

1шт.

15

84529819

BUSHING,M24 x 1.5

2шт.

16

12646724

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

17

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.
