Запчасти Case IH FARMALL 115C (55.512.CL[02]) - VAR - 338125 - MID MOUNT VALVE KIT, JOYSTICK (55) - ELECTRICAL SYSTEMS

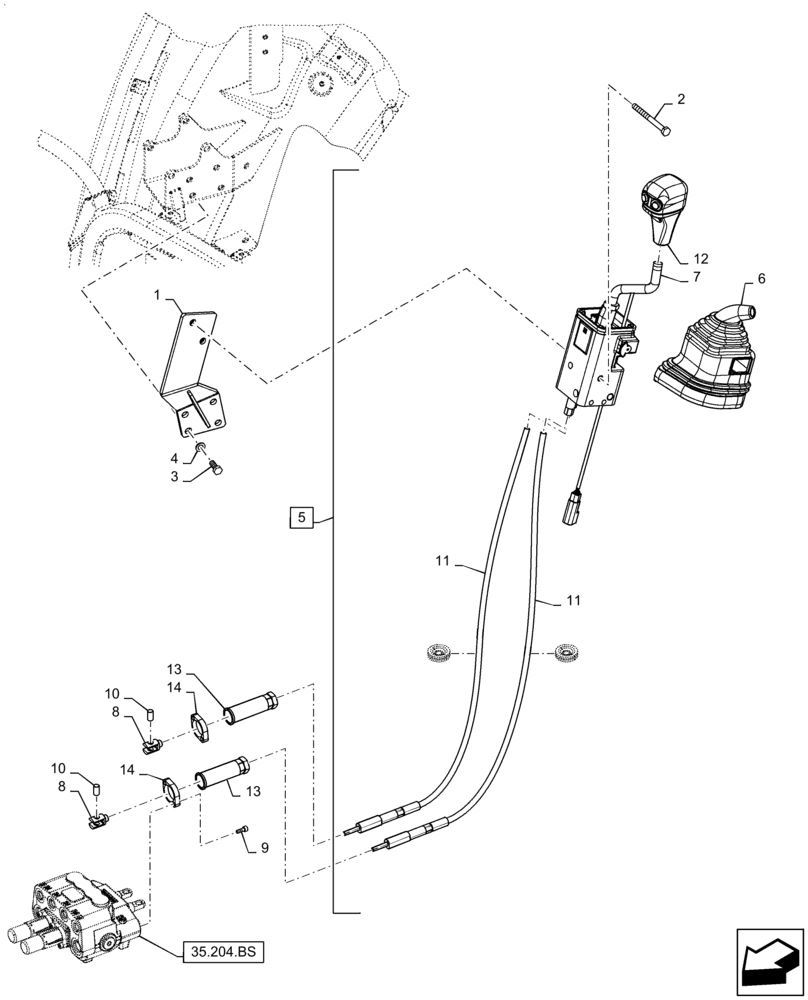

Схема запчастей Case IH FARMALL 115C - (55.512.CL[02]) - VAR - 338125 - MID MOUNT VALVE KIT, JOYSTICK (55) - ELECTRICAL SYSTEMS
1
14
9
2
13
6
12
10
7
13
14
8
5
35.204.bs
11
10
4
8
11
3

Артикул

Название

Примечание

Количество

1

84534720

BRACKET

Joystick Support

1шт.

2

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

47568254

CONTROL LEVER

Joystick, Mid-Mount, Incl 6, 7, 11, 12

1шт.

6

84370120

BOOT

1шт.

7

47411388

LEVER

Joystick, Mid-Mount Control

1шт.

8

87303906

YOKE

Joystick Cable

2шт.

9

14304621

SCREW,M5 x 14mm, Cl 8.8, Full Thd

4шт.

10

87332065

PIN,9mm OD x 17mm L

Mid-Mount

2шт.

11

47461946

CABLE

Joystick

2шт.

12

47414988

KNOB

Joystick

1шт.

13

84589426

BUSHING,16mm ID x 28mm OD x 80mm L

2шт.

14

84589454

FLANGE,25mm ID

2шт.

Выбрано товаров: 14
