Запчасти Case IH FARMALL 115C (55.510.BO[05]) - VAR - 390754, 334435, 334436, 335754 - PLATFORM MAIN WIRE HARNESS, BRACKET, CABLE CLIP (55) - ELECTRICAL SYSTEMS

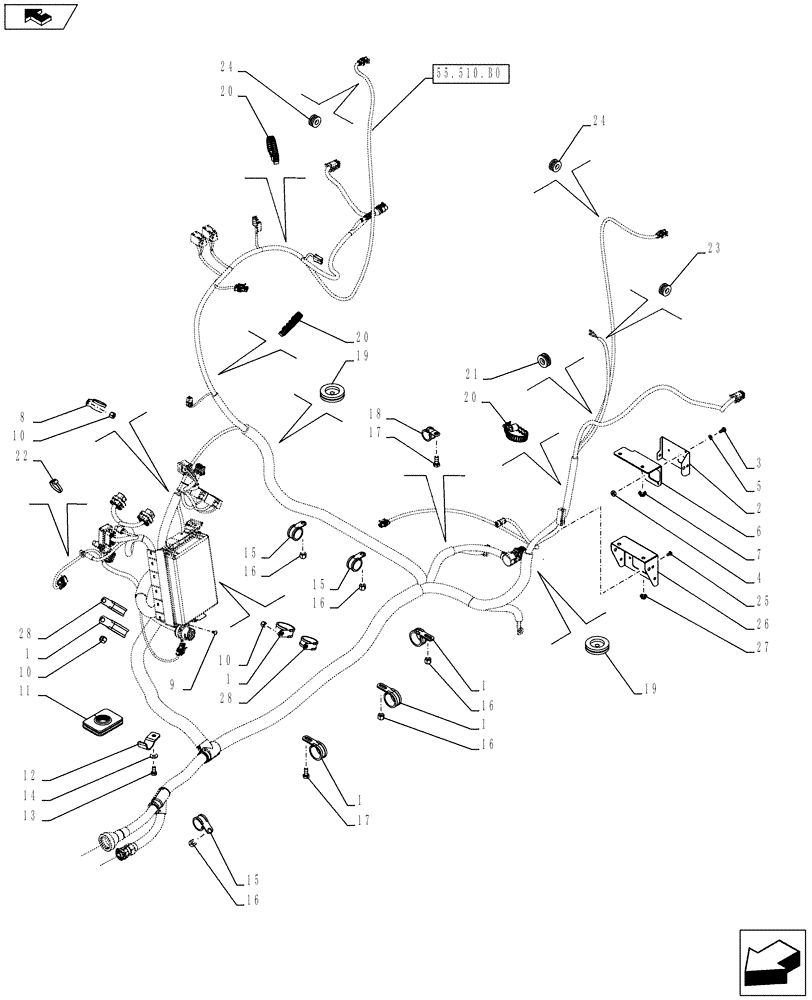

Схема запчастей Case IH FARMALL 115C - (55.510.BO[05]) - VAR - 390754, 334435, 334436, 335754 - PLATFORM MAIN WIRE HARNESS, BRACKET, CABLE CLIP (55) - ELECTRICAL SYSTEMS
17
1
1
16
22
13
10
55.510.bo
25
16
24
19
17
8
4
10
20
home
16
1
16
11
21
20
5
28
19
18
20
16
1
23
27
6
3
15
26
1
14
28
15
7
2
10
24
15
12
9

Артикул

Название

Примечание

Количество

1

47374986

CLAMP,32mm ID, 7mm Bolt Hole, P Type

5шт.

2

47416293

BRACKET

1шт.

For Shuttle transmission, Var.334435-334436

1шт.

3

10444511

BOLT,Hex, M4 x 10mm, Cl 5.8, Full Thd

3шт.

4

10794011

NUT,M4, Cl 8

3шт.

5

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

6

84230592

BRACKET

1шт.

For Shuttle transmission, Var.334435-334436

1шт.

7

13046111

LOCK NUT,Flg Lock, M6

2шт.

8

10419501

CLAMP,22mm, Coat, P Type

1шт.

9

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

4шт.

10

12574211

NUT,M6 x 1, Cl 8

3шт.

11

84408117

GROMMET

1шт.

12

84401102

BRACKET

1шт.

For Shuttle transmission, Var.334435-334436

1шт.

12

47411314

BRACKET

1шт.

For Power Shuttle transmission, Var.390754-335754

1шт.

13

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

14

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

1шт.

15

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

3шт.

16

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

5шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

18

10450790

RETAINER COLLAR,22mm, Coat, 9mm Bolt Hole, P Type

1шт.

For Shuttle transmission, Var.334435-334436

1шт.

18

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

1шт.

For Power Shuttle transmission, Var.390754-335754

1шт.

19

10403680

INSULATING RING,28mm ID x 46mm OD x 11mm Thk

2шт.

20

85805383

CABLE TIE

3шт.

21

10398280

GROMMET,14mm ID x 27mm OD x 11mm Thk

1шт.

22

14560087

CABLE TIE,103mm, Black

1шт.

23

10399080

GROMMET,M10 x 16 x 22mm

1шт.

24

10399180

RING,12mm ID x 24mm OD x 11mm Thk

2шт.

25

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

2шт.

26

47401225

BRACKET

1шт.

For Power Shuttle transmission, Var.390754-335754

1шт.

27

13046111

LOCK NUT,Flg Lock, M6

2шт.

28

10448890

CLAMP,36mm, Coat, P Type

2шт.

For Power Shuttle transmission, Var.390754-335754

1шт.

Выбрано товаров: 38
