(55.408.BL[01]) - VAR - 332850 - DRIVER SEAT, SWITCH

Запчасти Case IH FARMALL 115C (55.408.BL[01]) - VAR - 332850 - DRIVER SEAT, SWITCH (55) - ELECTRICAL SYSTEMS

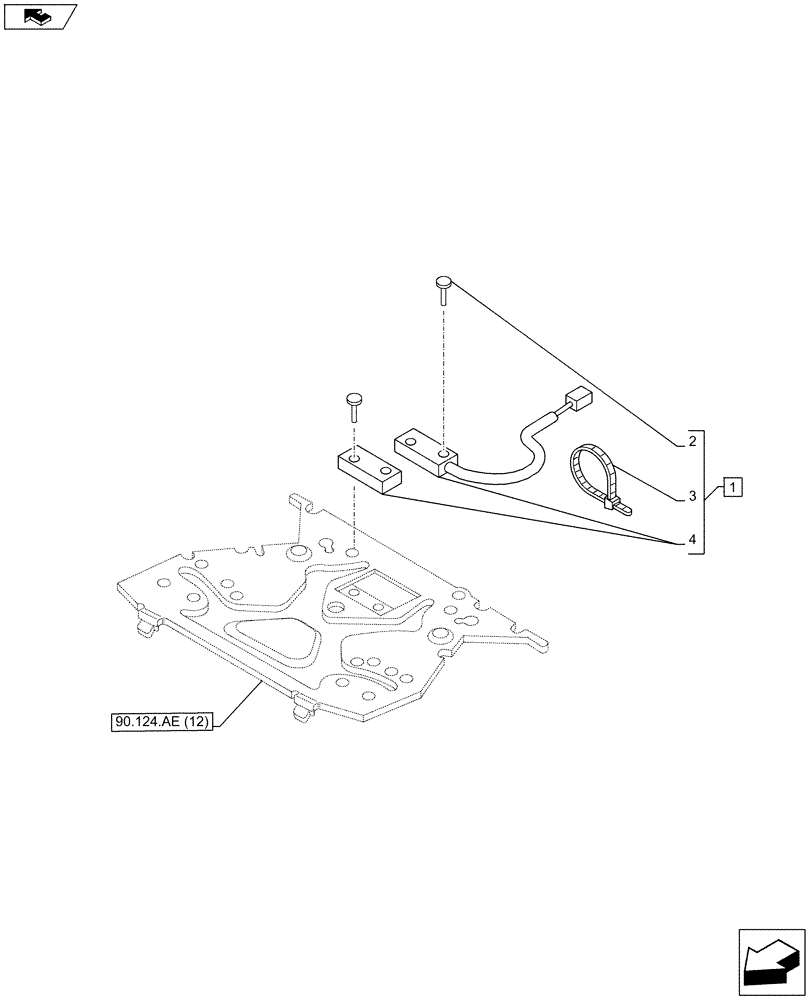

Схема запчастей Case IH FARMALL 115C - (55.408.BL[01]) - VAR - 332850 - DRIVER SEAT, SWITCH (55) - ELECTRICAL SYSTEMS
4
3
90.124.ae (12)
1
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84487915

SWITCH

Seat Operator Presence, ASSY, Incl 2 - 4, Incl in P.N. 84347495 shown in figure 90.124.AE (01)

1шт.

2

47124506

POP RIVET

4шт.

3

87567529

CABLE TIE,200mm L

2шт.

4

NSS

NOT SOLD SEPARAT

Switch, Incl in 1

1шт.

Выбрано товаров: 4
