Запчасти Case IH FARMALL 115C (55.404.BS[04]) - VAR - 743867 - WORK LAMP, ROOF-MOUNTED, REAR (55) - ELECTRICAL SYSTEMS

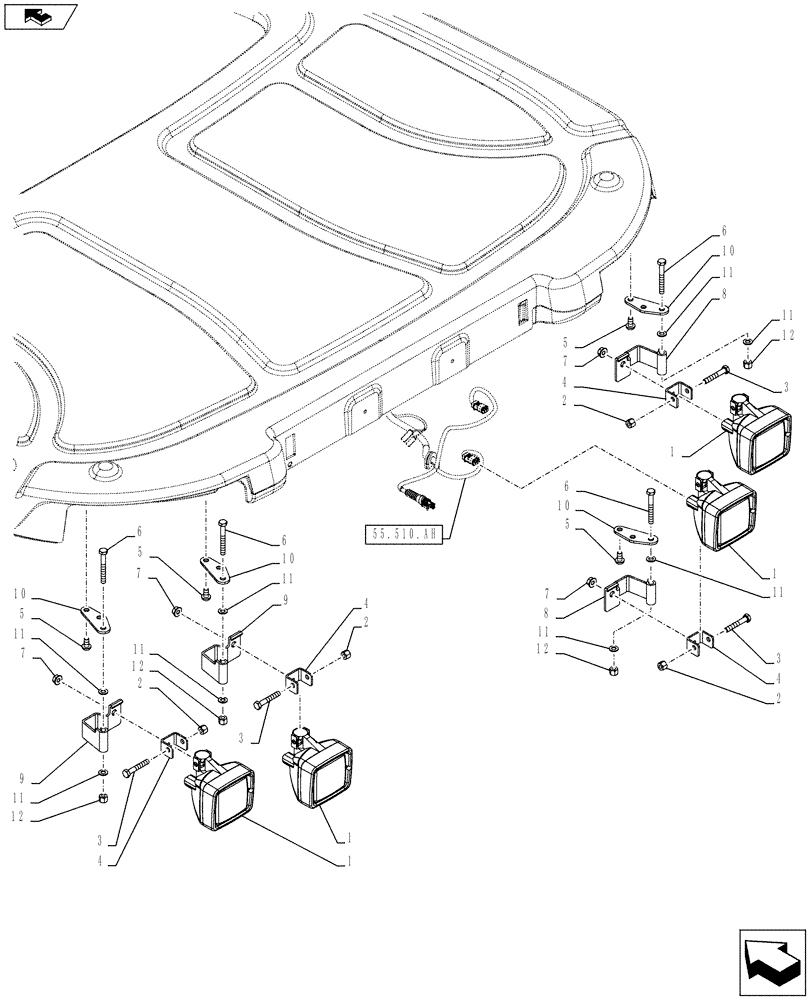

Схема запчастей Case IH FARMALL 115C - (55.404.BS[04]) - VAR - 743867 - WORK LAMP, ROOF-MOUNTED, REAR (55) - ELECTRICAL SYSTEMS
8
1
7
1
5
2
1
55.510.ah
1
12
1
1
2
1
2
10
5
4
12
7
1
8
12
1
6
5
3
3
1
1
2
home
12
1
6
1
3
5
1
1
1
10
4
7
10
7
10
4
9
1
3
4
6
1
1
6
1
9

Артикул

Название

Примечание

Количество

1

84299527

LAMP,Halogen, 12V, 55W, Clear Lens

H3, 12V - 55W

4шт.

2

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

4шт.

3

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

4

84317204

BRACKET

4шт.

5

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

M8 x 16 mm

4шт.

6

16044534

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

4шт.

7

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

8

84317200

BRACKET

RH

2шт.

9

84317199

BRACKET

LH

2шт.

10

84317198

COVER PLATE

4шт.

11

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

12

16104127

NUT,M8 x 1.25, Cl 10

4шт.

Выбрано товаров: 12
