(55.020.AB[01]) - GEARBOX, SENSOR (SHUTTLE)

Запчасти Case IH FARMALL 115C (55.020.AB[01]) - GEARBOX, SENSOR (SHUTTLE) (55) - ELECTRICAL SYSTEMS

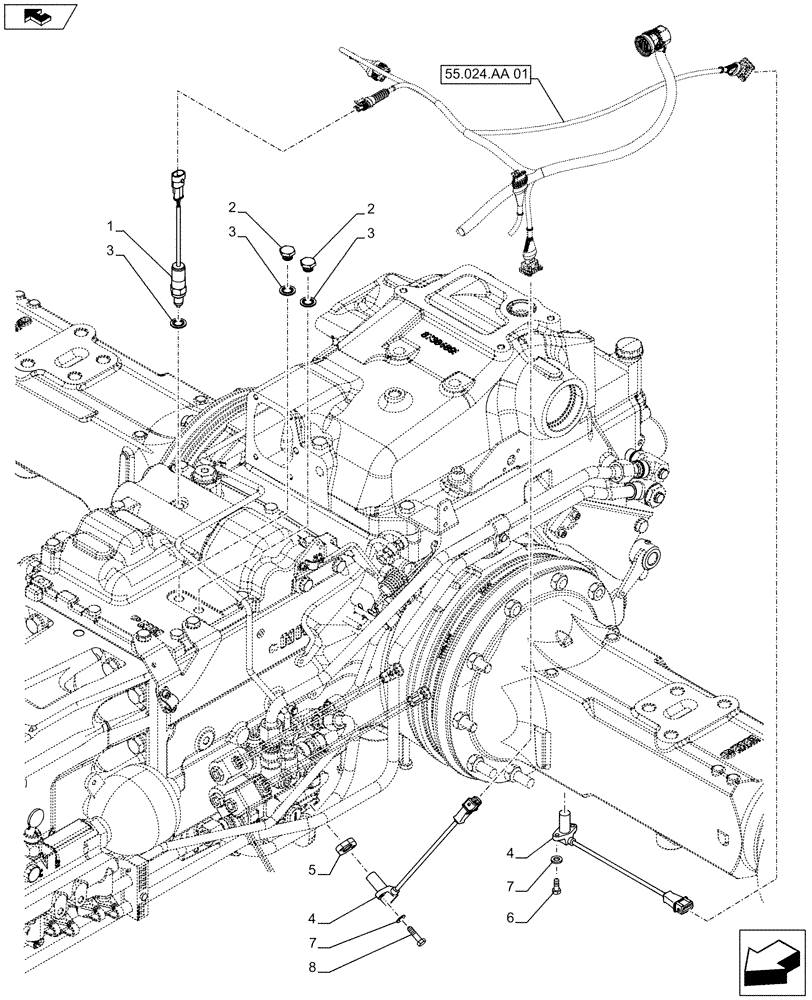

Схема запчастей Case IH FARMALL 115C - (55.020.AB[01]) - GEARBOX, SENSOR (SHUTTLE) (55) - ELECTRICAL SYSTEMS
7
3
1
2
home
5
6
8
3
4
3
2
55.024.aa 01
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84389036

SWITCH,Sky Blue, M14 x 1.5

Gear sensing

1шт.

2

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

2шт.

3

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

4

84541361

SENSOR

Speed

2шт.

5

47124333

SPACER

1шт.

6

10977714

SCREW,Hex, M5 x 14mm, Cl 5.8, Full Thd

2шт.

7

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

4шт.

8

10978021

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

2шт.
