Запчасти Case IH FARMALL 115C (05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE

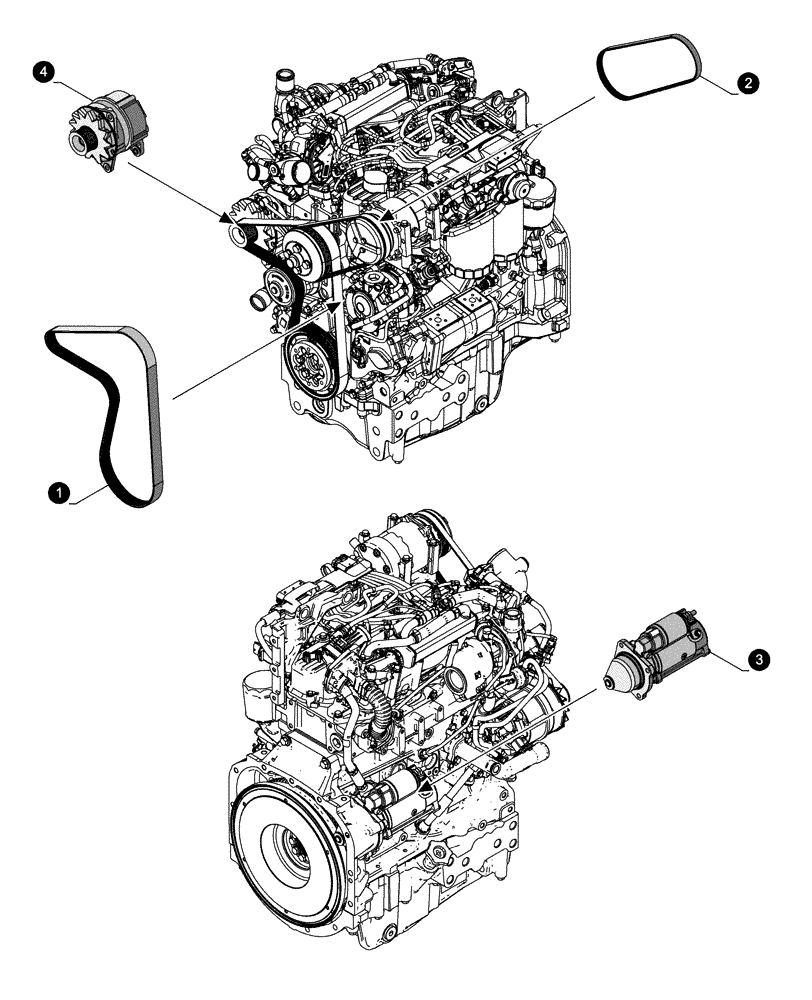

Схема запчастей Case IH FARMALL 115C - (05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE
4
1
2
3

№

Артикул

Название

Примечание

Количество

1

84426014

BELT,28mm W x 1432mm L, 8 Ribs

Main Drive

1шт.

Valid with FARMALL 105C-TRACTOR - TIER 4A, FARMALL 105C-TRACTOR HI-LO - TIER 4A, FARMALL 115C-TRACTOR - TIER 4A, FARMALL 75C-TRACTOR - TIER 4A, FARMALL 85C-TRACTOR - TIER 4A, FARMALL 85C-TRACTOR HI-LO - TIER 4A, FARMALL 95C-TRACTOR - TIER 4A, FARMALL 95C-TRACTOR HI-LO - TIER 4A Models

1шт.

Valid with VAR. 335697, VAR. 390018

1шт.

1

84412878

BELT,28.5mm W x 1425mm L, 8 Ribs

Main Drive (for Visco Fan)

1шт.

Valid with FARMALL 105C-TRACTOR - TIER 4A, FARMALL 105C-TRACTOR HI-LO - TIER 4A, FARMALL 115C-TRACTOR - TIER 4A, FARMALL 115C-TRACTOR HI-LO - TIER 4A, FARMALL 75C-TRACTOR - TIER 4A, FARMALL 75C-TRACTOR HI-LO - TIER 4A, FARMALL 85C-TRACTOR - TIER 4A, FARMALL 85C-TRACTOR HI-LO - TIER 4A, FARMALL 95C-TRACTOR - TIER 4A, FARMALL 95C-TRACTOR HI-LO - TIER 4A Models

1шт.

Valid with VAR. 330009, VAR. 335689, VAR.743500, VAR.744764

1шт.

2

84305213

BELT,14mm W x 873mm L, 4 Ribs

A/C Compressor (for Visco Fan)

1шт.

Valid with FARMALL 105C-TRACTOR - TIER 4A, FARMALL 105C-TRACTOR HI-LO - TIER 4A, FARMALL 115C-TRACTOR - TIER 4A, FARMALL 115C-TRACTOR HI-LO - TIER 4A, FARMALL 75C-TRACTOR - TIER 4A, FARMALL 75C-TRACTOR HI-LO - TIER 4A, FARMALL 85C-TRACTOR - TIER 4A, FARMALL 85C-TRACTOR HI-LO - TIER 4A, FARMALL 95C-TRACTOR - TIER 4A, FARMALL 95C-TRACTOR HI-LO - TIER 4A Models

1шт.

Valid with STD

1шт.

2

84469820

BELT,14mm W x 884mm L, 4 Ribs

A/C Compressor

1шт.

Valid with FARMALL 105C-TRACTOR - TIER 4A, FARMALL 105C-TRACTOR HI-LO - TIER 4A, FARMALL 115C-TRACTOR - TIER 4A, FARMALL 75C-TRACTOR - TIER 4A, FARMALL 85C-TRACTOR - TIER 4A, FARMALL 85C-TRACTOR HI-LO - TIER 4A, FARMALL 95C-TRACTOR - TIER 4A, FARMALL 95C-TRACTOR HI-LO - TIER 4A Models

1шт.

Valid with VAR. 390018

1шт.

3

84208918

STARTER MOTOR,12V, 3.2kW

On Engine

1шт.

Valid with FARMALL 105C-TRACTOR - TIER 4A, FARMALL 105C-TRACTOR HI-LO - TIER 4A, FARMALL 115C-TRACTOR - TIER 4A, FARMALL 115C-TRACTOR HI-LO - TIER 4A, FARMALL 75C-TRACTOR - TIER 4A, FARMALL 75C-TRACTOR HI-LO - TIER 4A, FARMALL 85C-TRACTOR - TIER 4A, FARMALL 85C-TRACTOR HI-LO - TIER 4A, FARMALL 95C-TRACTOR - TIER 4A, FARMALL 95C-TRACTOR HI-LO - TIER 4A Models

1шт.

4

47383500

ALTERNATOR,14V, 120A, W/Pulley

On Engine

1шт.

Valid with FARMALL 105C-TRACTOR - TIER 4A, FARMALL 105C-TRACTOR HI-LO - TIER 4A, FARMALL 115C-TRACTOR - TIER 4A, FARMALL 115C-TRACTOR HI-LO - TIER 4A, FARMALL 75C-TRACTOR - TIER 4A, FARMALL 75C-TRACTOR HI-LO - TIER 4A, FARMALL 85C-TRACTOR - TIER 4A, FARMALL 85C-TRACTOR HI-LO - TIER 4A, FARMALL 95C-TRACTOR - TIER 4A, FARMALL 95C-TRACTOR HI-LO - TIER 4A Models

1шт.
